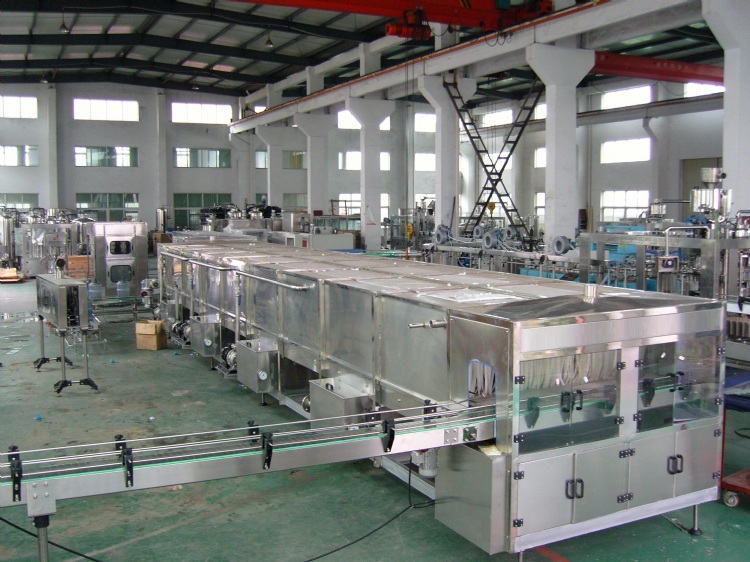

Spray cooling (warming) tunnel
產品型號：PLJ-12000
產品分類：包裝印刷暨食品及製藥機械 / 食品及製藥機械 / 果汁整廠設備
產品特色
Based on advanced same technologies from Germany,Italy and Taiwan,we developded this new type of bottle cooling/heating machine Its working process can be divided into 3 stages:circulating hot water spraying.warm water pre-cooling and cold water-cooling.The cooling/heating temperature and time can be regulated in according to the requirements of user,It is suitable for cooling or heating all kinds of bottled or canned hot beverage and aerated beverage.It equips with "Rexnord"(American famous brand )chain plate,which made of high temperature resistance polypropylene(CPP).Its structures is made of fine stainless steel.So the machine is more reliable in running,also it has a beautiful appearance.
產品規格
|
||||
|
Model
|
PLJ-4000
|
PLJ-6000
|
PLJ-12000
|
PLJ-16000 |
|
Output capacity (Battle/H)
|
3000-4000
|
5000-6000
|
8000-12000
|
13000-16000 |
|
temperature(℃)
|
37-45
|
|||
|
cooling time
|
12-15(min)
|
|||
|
Conveying belt linear speed (mm/min)
|
100-550
|
|||
|
Width of chain (m)
|
1.22
|
1.22
|
1.5
|
2.0 |
|
Steam pressure(MPa)
|
<0.4
|
|||
|
Water consumption (m3/h)
|
6
|
9
|
15
|
|
|
Steam consumption (Kg/h)
|
80
|
120
|
250
|
400 |
|
Motor power (kw)
|
6
|
7.55
|
8.6
|
|
|
Overall dimension (mm)
|
4700×
1500× 1650 |
6000×
1500× 1650 |
8000×
1800× 1650 |
8000× 2300× 1650 |
|
（Kg）
|
2500
|
3200
|
4800
|
6500 |
