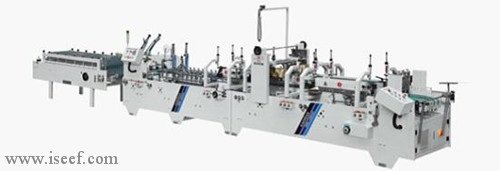

CE-SHH-AG Pre-folder & Lock bottom Automatic Folder Gluer-issef.com
產品型號：YFMD
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 其他(包裝機械)
產品特色
Description:
SHH-AG is a kind of new type economic pre-fold lock-bottom high speed automatic pasting machine with nice appearance and easy use. In the pre-folding part, the first fold and the third fold can be exchanged by 180 degree and 150 degree. The second fold and the fourth fold can be molded in 180 degree; the special design is also available. It is more economic and practicality. Can be used to various kinds of lock-bottom and non lock-bottom boxes, such as medicine box, wine box, cosmetic box.
產品規格
Major technical index
SHH-800AG
|
Type of boxes |
(Amax) |
(Amin) |
(Bmax) |
(Bmin) |
(Cmin) |
(Dmin) |
(Fmin) |
|
No-edged bottom box |
700mm |
70mm |
620mm |
110mm |
8mm |
70mm |
51mm |
|
Edged Bottom box |
700mm |
160mm |
570mm |
180mm |
9mm |
90mm |
85mm |
SHH-1200AG
|
Type of boxes |
(Amax) |
(Amin) |
(Bmax) |
(Bmin) |
(Cmin) |
(Dmin) |
(Fmin) |
|
No-edged bottom box |
700mm |
70mm |
840mm |
110mm |
8mm |
70mm |
51mm |
|
Edged Bottom box |
700mm |
160mm |
800mm |
180mm |
9mm |
90mm |
85mm |
Characteristics
|
Linear velocity |
0°220m/min |
|
Suitable paper quality |
220°800g／m² card paper and E wave corrugated paper |
|
Paste box basic form |
One-side edge pastes, two-side edge pastes. |
|
Feeding way |
Automatically and continuously feeding |
|
Adhesive |
Solute type |
|
Needed power |
AC380V 7KW |
|
Weight |
2500KG |
|
Overall Size |
8900 ×1100(1300)× 1350mm |
|
The scope of Count |
0°999999 |
