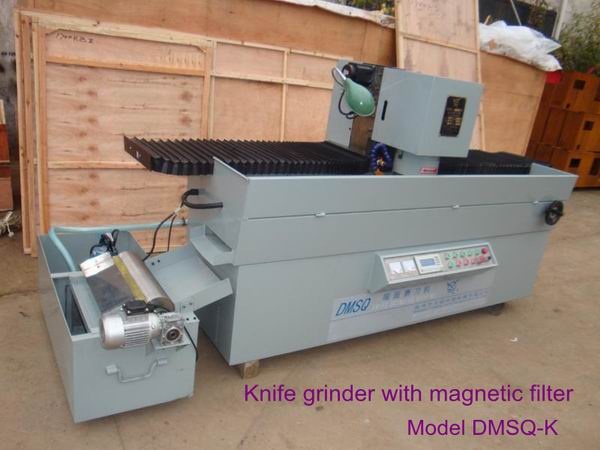

CE-surface knife grinder with magnetic filter



產品型號：DMSQ-K

產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 其他(包裝機械)



立即線上詢問





產品特色



It’s a fully automated programmable knife grinding machine. It uses stepping motor, PLC programming control systems, can automatically adjust the times of coarse grinding and fine grinding. It can automatically feed grinding wheel with memory, storage and dynamic tracing functions. It uses a dust cover device, electro-magnetic chuck loaded knife, the key electrical and key parts’ bearing adopt the imported original documents. It is the highest degree of automation machine in the similar models.

It is an ideal grinding equipment for the printing, paper, wood, plastic leather, making panels and other industries, and it is the best choice for the small grinding centers, small and medium sized enterprises of printing and packaging industries.

The main function characters

Drive Mechanism
01. Main transmission: rack and pinion transmission
02. Turbine worm transmission
Machine Structure
01. Cantilever-type body mad of mezzo forte cast iron
02. wide guide rail
03. Electric magnetic chuck
04magnetic filter
Main Function Deployment
01. automatic feeding Grinding wheel
02. With a dust cover device
03. With memory, storage functions
04. PLC programming control system
05 Automatic cleaning coolant
Optional Device
01. Imports of electrical components: Schneider electric (optional, costs excluded)
02. Scraper Clamp: for toilet paper making machine (extra costs)
