• CE-Program Control Paper Cutting Machine-iseef.com-QZYK-920D

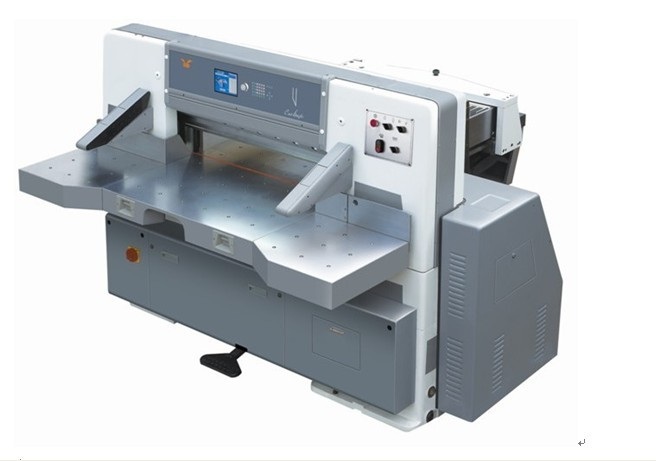

CE-Program Control Paper Cutting Machine-iseef.com-QZYK-920D



產品型號：QZYK-920D Program Control Paper Cutting Machine

產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 自動切捲機裁斷機



立即線上詢問





產品特色



1. Usage: QZYK920D Program Control Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.

2. COMPUTER: It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation. This
Series of machine adopts 10.4 inches color liquid crystal display screen from Corea LG.

The machine has several languages, and USB interface .The PLC is from Taiwan Taida .which monitor the electric equipment and machine . The program memory can store 10000 Programs , each of them can save 1000 cuttings datum . Paper delivering motor is Japan servo motor , its working speed is 6-18m/min.And the position accuracy can be 0.01mm.

3. Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.
4. Double Guide Device: the paper pusher adopts double imported linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.

5. Photo cell: it is equipped with a photo cell safety protection device.
6. Over load protection device; convenient knife changing device.
7. Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
8. Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
9. Cutting controller: both of the user’s hands operate the machine. It can cut paper in one time.

10．Electronic knife lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
11. Safety notice & Glass covers: the machine has passed CE certificate. All the safety notice and direction mark is used to cause the safety attention of the user, and do protection and maintenance in time.

12. Main electric device are imported from Germany, French, Japan, etc.

The computer function :
1.Automatic operation
2.Semi-automatic operation
3.Manual operation
4.Demonstration
5.Automatic precise position
6.Manual position
7.Paper sender moves forwards and back wards
8.Paper sender automatically accelerant or decelerate
9.Compulsory new direction
10. Mandatory stop cutting（controlled by photo cell）
11. air pump works（controlled by strongly power）
12 .Manual air blow control （controlled by strongly power）
13.Automatic seek origin
14.Automatically clear the origin erro
15. Personalized programming mode
16. Division
17. Isometry
18. insert cutting manual
19. Program browse
20. multi language system
21. Units change(inch ,mm ,cm)
22. Time
23. Skip cutting
24. Micro adjustment
25. Self-diagnose malfunction
26. Animate machine working process
27. pressing the paper time selecting function
28. Operator can set password for starting the machine.
29..Count cutting datum
30. Amend paper shift
31. Sequence label
32.It can save 2,000 program files
33.each of them can save 999cuttings’ datum.
34.The storage time can reach 300,000 hours
35.Adjust the paper-sending speed
36. Safety warning
