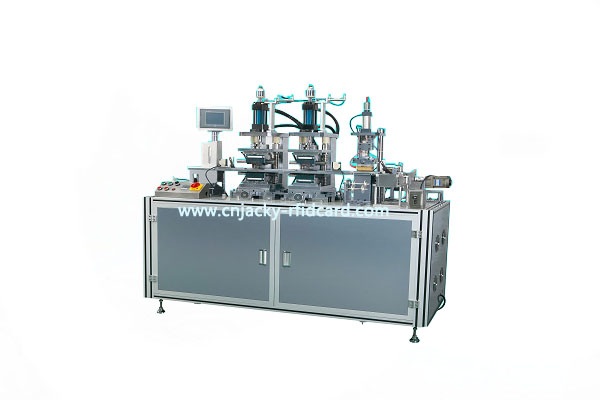

CNJ-TD400 Auto Code Embossing and Tipping Machine



產品型號：CNJ-TD400

產品分類：包裝印刷暨食品及製藥機械 / 其他 / 其他



立即線上詢問





產品特色



The machine controlled by PLC Automatically and operated on English and Chinese touch screen human-machine friendly interface, it is a intelligent machine incorporating function of big and small code embossing, gilding
and card collection. It is available for the code embossing and gilding of large quantities of series card.





(such as bank card, VIP card, internet card etc.)



Function and Feature
1. The big, small and gilding modules are independently function modules, the position and the parameters(such as character, digit) for the modules can be adjusted，the big and small code embossing and gilding can be finished at the same time or to choose the function on the touch screen work independently，it is convenient to switch.
2. Double hydraulic punching heads are adopted as power, with good stability, and running speed and code punching stroke can be adjusted, with good effect.
3. The big or small codes can be arranged for max 20 digits, can meet the needs of embossing request bank cards.
4. The error of code position is smaller than ±0.25mm
5. Stepping distance for gilding belt can be adjusted, which improves utilization rate of iron printing material.
6. Numbers that are not needed can be deleted by program setting (such as 4 and 7),just set up the skip numbers in the touch screen, the program will skip the numbers are set .
7. Use belt stack to collect cards, card collecting and testing will be executed at the same time
8. PLC control is adopted for automatic running and the machine will halt and alarm automatically in case of no card or trouble
9. The fonts are elegant and plump and gilding effect is good, rivaling fonts by advanced air jet code punching machine imported from the United States
10. Individuation character mould design which can be made according to machining as customer’s request(such as character of each country, currency symbol, Notec.)
