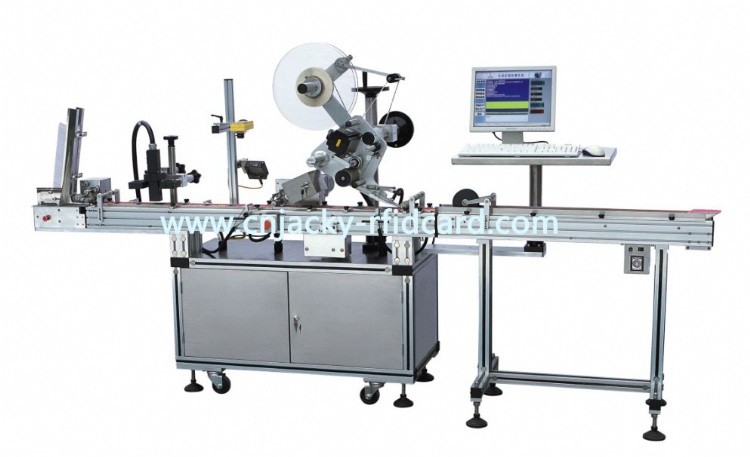

CNJ-All-in-one Card Personalization System
產品型號：CNJ-All-in-one
產品分類：包裝印刷暨食品及製藥機械 / 其他 / 其他
產品特色
Usage:
It is mainly used for printing, detecting and labeling all kinds of PVC and paper cards (scratch Cards).
Features:
1. Integrated printing, detecting and labeling.
2. No need for manual detecting and decrease the time and labor cost.
3. US made machine vision, DVT from Cognex ensures high data accuracy.
4. Printing control software is compatible with different brands of inkjet printers (Imaje, Videojet, Domino, Linx) for maximum printing flexibility.
產品規格
Specifications:
Card Size: 50-120mm(L) x 50-90mm(W) x 0.2-2mm(T)
Card material: PVC, Paper, etc.
Productivity: 15000-18000 pieces / hour (0.76mm thickness)
Labeling precision: ±0.8mm (along movement direction); ±0.4mm (across movement direction)
Power Supply: 220VAC, 50Hz, 0.5Kw
Air: 0.6 Mpa
Dimension: 2800mm(L) X 600mm(W) X 1350mm(H)
Weight: Approx. 250Kg
