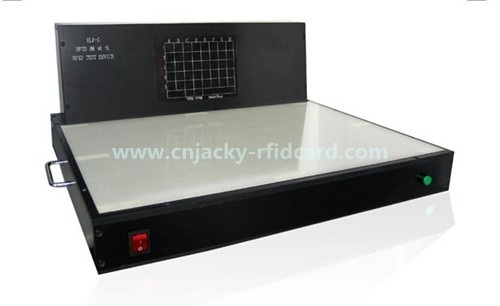

CNJ-inlay tester
產品型號：CNJ-1
產品分類：包裝印刷暨食品及製藥機械 / 其他 / 其他
產品特色
Features:
1.Saving H.R cost
2.Improving efficiency: Only 3 seconds for whole sheet inlay testing.
3.Easy operating: auto check transponder function, use LED & sound to alert defective transponder
4.Easily find different problems like chip, antenna, bonding results during production
5.Support prevailing contact-less cards in market.
6.Customization according to customer’s sheet layout, and different types of special cards
Specification:
1.Working volt:AC 110 – 220V (50/60Hz)
2.Working current: <200mA
3.Working temperature:-25--85 °C
4.Support Inlay layout:3x8, 5x5, 4x8, also accept customization
5.Power: 220/110V AC
6.RS232 interface:(option)
- Connected PC, for visualization of the operation
- Upgrade the program
產品規格
Support Cards:
1.ISO14443-Type A: Mifare® Std 1k, Mifare® Std 4k, Ultralight, Mifare® DESFire, etc.
2.ISO14443-Type B:AT88RF020, AT88RF080, ST®SRIX4K, SR176, TRH1064
3.ISO15693 : ICODE SLI ICS30, ICODE SLI SL2 ICS20, TI-RFid TM
4.SRF55V02P, SRF55V10P, EPC, etc.
5.Other customized chip likes China 2nd Generation ID card, etc.
