產品規格

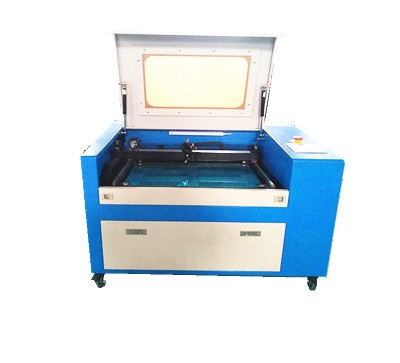

 DSP and USB reading file 60W80W 6040 CO2 Laser Engraving Machine

Features

1. 3.5 inch Color display screen makes operation easy and friendly man-machine interface. It has laser cutting head movement control, output laser power control,engraving speed control, press key then engraving function, engraving border preview and U disk file reading functions.

2. It adopts DSP high speed processor which supports USDB 2.0 interface and U flash memory disk read and write file.  It is good for mass engraving or cutting.

3.It has internal memory makes it can separate from PC and independently set parameters.

4. It has stable high speed cutting and soft velocity variations performance which realizes no sawtooth shape during high speed cutting.

5. Network management makes it communicate with PC easy, security and relible.

6. It has auto lifting platform which is good for different material engraving. The upgrade industrial CO2 laser cutting head has laser adjustment screw. It can get more accuracy laser optics path and engraving effect.

7. It also has automatic blowing, auto focus, pedal switch and security protection function. Also soft/hard coordinate limit protection is applied.

8. It has power off continued carving, power failure recovery, processing time prediction, intelligent typesetting and cost budget function.

9. It supports two laser control function. Each laser power can be adjusted individually. Also two laser head reciprocal cutting is applied at this machine.

10.Small circle cutting speed can be flexibly set and improve small circle cutting effect.

11.Hierarchy data output function is applied. Output power, output speed,laser mode(engraving,cutting or slope engraving at tach hierarchy and these data can be saved automatically.

12. Real-time status or track of engraving or cutting and lock display function are applied on this machine.

13. Gallery has 2000 documents, laser anti-counterfeit fingerprints and thousands of fronts.

Specification:

1. Laser power:50W,60W,80W or 100W

2. Max engraving area：600x400mm

3. Max engraving speed:0-60000mm/min

4. Max cutting speed:0-3600mm/min

5. Repeatability:0.01mm

6. Cutting thickness:0-10cm(depends on material)

7. Working voltage:AC110/220V,50-60Hz

8. Total power:1000W

9. Min character: English 1x1mm

10. Working table: honeycomb or knife strip platform

11.Auto lifting platform: Yes. Lifting range is 0-300mm

12. Rotary clamping tool: Φ10-150x600mm

13.Driving type: Digital subdivision stepper type

14. Location type: Red light

15. Graphic format: BMP,PLT,DST,DXF and AI

16. Driving motor: Stepper motor

17. Cooling method: Forced water cooling and protection system

18. Control software: DSP

19. Compatible software: CoreDraw, AutoCAD and Photoshop

20. Assistant device: Exhaust fan with exhaust pipe

21:Machine size:1260x835x620mm(50W,60Wor 80W)

               145x835x620mm(100W)

Application materials

Apply on jade,MDF,metal,paper,leather,plastic,rubber,crystal and other non metal material.
