Feature

1. It adopts high quality CO2 laser tube, eg,Reci, EFR,Yongli or other brand. Focus lens or reflective mirrors are imported from USA.

2. Upgraded industrial CO2 laser head has laser adjustment screw. It can adjust output laser power and laser head location also can be adjusted too.

3.Stable structure and moving system, higher precision.

4.Automatic lifting platform, lifting height is 200mm. Also it has blowing flame retardant,red light location and negative pressure adsorption function.

5. It has module guide rail which make sure the machine has high engraving accuracy and longtime service time.

6. Color display screen makes operation easy and friendly man-machine interface. It has laser cutting head movement control, output laser power control,engraving speed control, press key then engraving function, engraving border preview and U disk file reading functions.

7.Signle laser cutting head is default. Double laser heads can be optional.

8.Laserdraw motherboard/Controller and coredraw software is default. LaserCAD/AUTOCAD/Ruida controller with RDworks software(Advanced DSP technology) are optional

9.  DSP supports USDB 2.0 interface and U flash memory disk read and write file.  It is good for mass engraving or cutting.

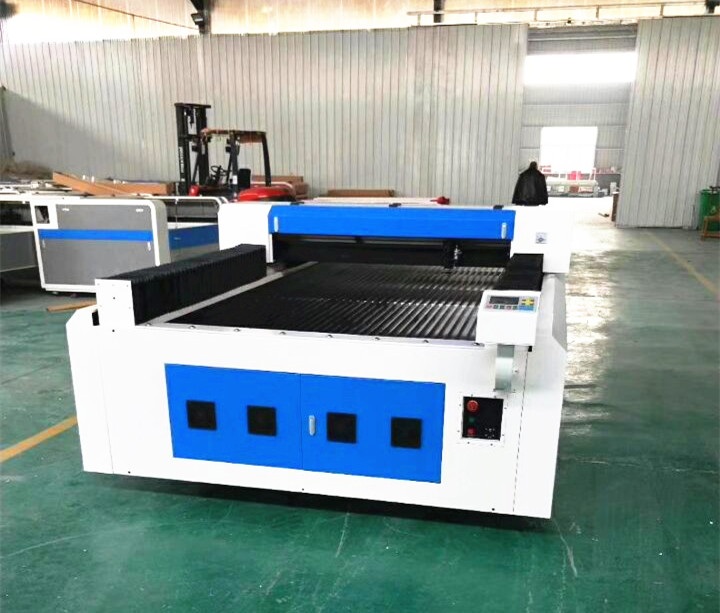

Specification

1.Laser-:Sealed CO2 laser tube

2.Laser power:60W,80W,100W,130W or 150W

3.Engraving area:1600 x 1100mm

4.Whole machine size:2080 x 1400 x 1000mm

5. Max engraving speed:0 - 60,000mm/min

6. Max cutting speed:0-3600mm

7.Resetting position accuracy:±0.05mm

8.Working voltage:AC 110 - 220V ±10%, 50 -60Hz

9.Operating temperature: 0 - 45℃

10.Operating humidity:5 - 95%

11.Minimum shaping character:English 1 x 1mm

12.Graphic format supported: BMP,PLT, DST, DXF and AI

13.Driving system: stepper

14.Cooling mode: water-cooling and protection system

15.Auxiliary equipments: Exhaust-fan, air-exhaust pipe

16.Net Weight:340kg.

17.Color separation cutting:Yes

Applicable materials

wood, bamboo, jade, marble, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials.
