產品規格

Features

1.Air cooled cooling systerm, easy and quickly installation,USB contacted with any computer and  install softerware easily

2.Use interfaces types: text, graphics, serial number, serial number, a d bar code, 2 d barcode, successive signet (optional equipments), etc

3.Suitable for: anodized sculpture, hand tools deep carved, aluminum a deep carved, stainless steel surface carved black, IC table sculpture, etc.!

4.Advantages: small volume, avoid consumables, flexible degree is high, use 5-100000 hours and hours without power attenuation problem!

6.It adopts Germany scanning galvanometer. It has high scanning speed and good quality laser beam.

7. It adopts high grade motherboard which has powerful features. This software can be matched with CorelDraw, AutoCAD, Photoshop and others. It also support PLT,PCX,DXF,BMP,etc. It also can directly uses SHX and TTF FontLab.

8.It has red light preview functions.

9. It has manual adjustment laser optics functions which is good for fine marking.

10. It has X and Y axis bidirectional mobile platform and 360 degrees rotary fixture which is good for plane, cylindrical or comicalness marking.

Specification

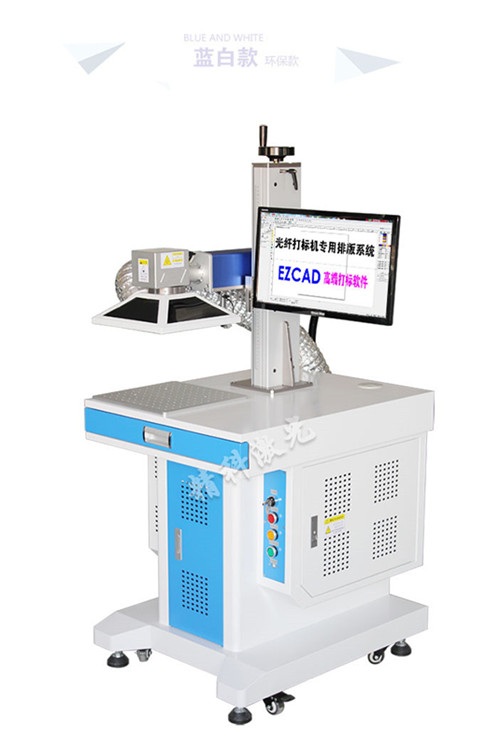

1. Model:LF10, LF20, FL30 or LF50

2. Wave length:1064um

3. Laser power:10W ,20W,30W or 50W IPG, Raycus or Max

3. Marking thickness:More than 0.8mm(depends on materials)

4. Min line width:0.05mm

5. Working distance:500mm

6.Marking speed: Less than 10000mm/S

7. Min character: 0.2mm

8. Repeatability precision: 0.002mm

9. Laser security classification: Class IV

10. Laser marking size: 110x110mm standard,70x70mm,200x200mm or 300x300mm optional

11. Operation software: EZCAD, it can support windowsXP/7 32

12. Graphic format: PLT,DXF,AI,SDI,BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFF

13. System protection: IP54

14. Galvanometer: Germany technology product

15. Control interface: USB

16. File format: All font and graphemic of Windows

17. Input voltage: 110/220V

18. Cooling method : Air cooling

19. Optional spares:Various fixtures, assembly line working table, multistation working table, rotatable working table,etc.

20. Overall power consumption: Less than 500W, Less than 700W, Less than 1000W

21. Machine size: 600x650x1300mm

22. Machine weight : 75KG

Applicable Materials
Can be used in wood,paper,leather,cloth,organic glass, epoxy,acrylic,unsaturated poluester resin and other non-metal materials.

Applicable industry
Widely used in leather,food,beverage,cloth,electronic,meter,communication instruments,package and other industries,can be combined with streamline for online marking.
