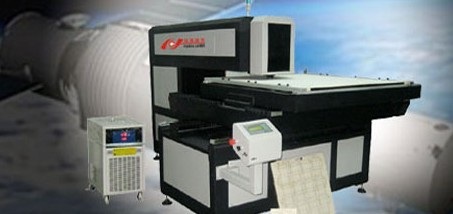

LASER DIEBOARD GUTTING MACHINE
產品型號:MT-500
產品分類:自動化設備/產業機械 / 自動化設備 / 雷射切雕刻機
產品特色
Main configuration and performance characteristics
●Fixed light route (the optical stationary, and plank mobile), reduce the laser refractive, simple operation and adjustment, and even cutting gap.
●Both axis adopted imported double nut precision ball screw drive (more accurately than generally accurate);
●Germany Berger Lahr motor drive systemwith a ball screw, strength, endurance, precise;
●With dynamic auto focus cutting system, automatically ADAPTS to the material and thickness of the bending rugged, ensure the whole board face cut seam consistently;
●Random automatic blow air control electric air system
●Strong smoke exhaust system, work rarely smoke, create good working environment;
●Professional laser constant temperature cooling system
●Offline control unit, LED display interface; can adjust most mechanical parameter and cutting parameter, 64 M graphics data storage space fully meet the needs of large files
●Professional Dieboard cutting control software and humanized cutter graphics processing
system (including the automatic generating system)
●Industrial machine bodz, the annealing remove stress processing, the elder use won't have deformation
●Laser generator and mechanical separated structure e, the vibration of the machine will not cause the laser shaken and cause light route unstable and premature for vibration and damage; This structure can be more easily upgrade single head into high power laser cutting machine.
●The machine has high ratio between price and quality, it can get back investment within
Three to four moth with full orders.
產品規格
Detailed technical parameter for MT-500 :
Model of machine |
MT-500 |
Laser power |
300W |
Relative cutting ability |
500W |
Laser type |
Domestic high-quality CO2 laser
|
18 mm ordinary laminates (0.7 mm wide cut gap) |
32 m/every hour or m ore
|
Working traval |
1210mm*910mm |
The cutting precision |
0.02mm |
Positioning accuracy |
<0.01mm |
Transmission way |
X Y both sides to import double nut ball screw drive |
Light path form |
Fixed light road (laser head fixed, plate work mobile) |
Cutting material thickness |
5-30 mm |
MDF thickness |
6-23 mm laminated board
|
Cooling water temperature |
5℃~30℃ |
Cooling water |
No impurities pure water |
Cooperate with gas |
Dry no oil compressed air |
Relative humidity |
≤80% |
Power demand |
Single phase, 220V±5% 50Hz 20A |
Numerical control panel |
The LED display, Chinese and English operation menu, light touch buttons |
Transmission port |
Offline control unit + the USB connection, equipment can put alone |
Instruction system |
International standard: DXF PLT, AI, support and so on many kinds of file format |
Control software |
precision laser dieboard Cutting system (in English) |
Operation software |
laser Cutter graphics processing system ( including the automatic generating system) |
dimensions (mm) |
Static: long * * wide high = 2600 * 2100 * 1850 boot: long * * wide high = 3100 * 3050 * 1850 |
