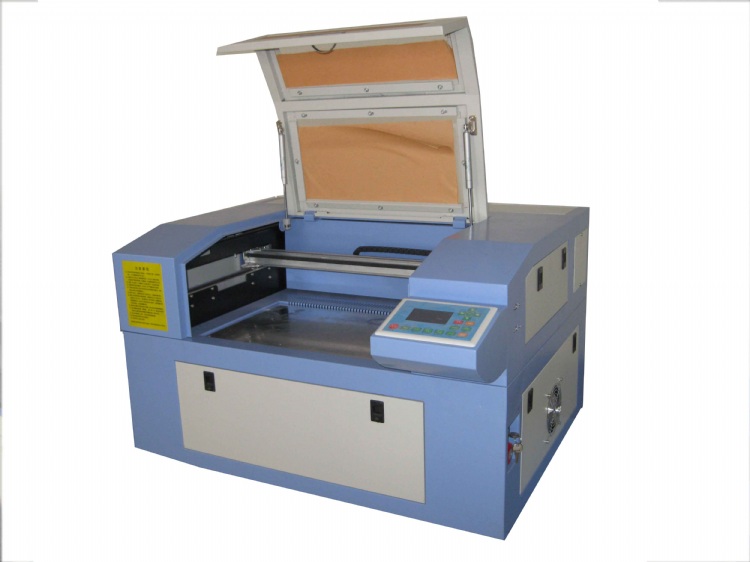

laser crafts engraving machine and cutting machine
產品型號:MT-530
產品分類:自動化設備/產業機械 / 自動化設備 / 雷射切雕刻機
產品特色
Feature
MT-530 engraving machine is desktop model.
It is a economic type with small occupation, relatively high precision;practical type with high engraving accuracy, motors up and down to improve work efficiency greatly.
This special designed crafts engraving machine, adopts imported parts, integration of optical, electric and mechanic technologies, beautiful and practical with remarkable performance;
Operate easily, provided with lifting platform, support printers and scanners, be compatible with TIF national standard word stock and file formats such as BMP, JPG;
Operation panel with Chinese LCD display, font specification, can change randomly between different characters, meet the needs of different customers;
Range of application
Applicable industry: Especially suitable for handiwork industry;
Applicable material: wood, bamboo, jade article, marble, organic glass, crystal, plastics, cloth, paper, lather, rubber, ceramics and other non-metallic materials.
產品規格
Technical parameters
Laser type |
Sealed CO2 laser tube |
Laser power |
40W |
Engraving size |
500*300mm |
Engraving speed |
5-60000mm/min |
Cooling mode |
Forced water cooling |
Power supply |
220V,50Hz |
Gross power |
<1,000W |
Type of drive |
Stepper motor |
Min. shaping character |
English 1mm, Chinese 2mm |
Graphic Format Supported |
BMP, PLT, DST, DXF, AL |
Working temperature |
0-45℃ |
Location precision |
±0.01mm |
Machine size/ |
L900×W81.5×H550mm |
spare parts |
up-down platform for engraving different height object
|
Net weight |
50kg |
