STAINLESS STEEL/CARBON STEEL/ALLOY STEEL YAG-LASER CUTTING MACHINE
產品型號:DM-XY-YAG500
產品分類:自動化設備/產業機械 / 自動化設備 / 雷射切雕刻機
產品特色

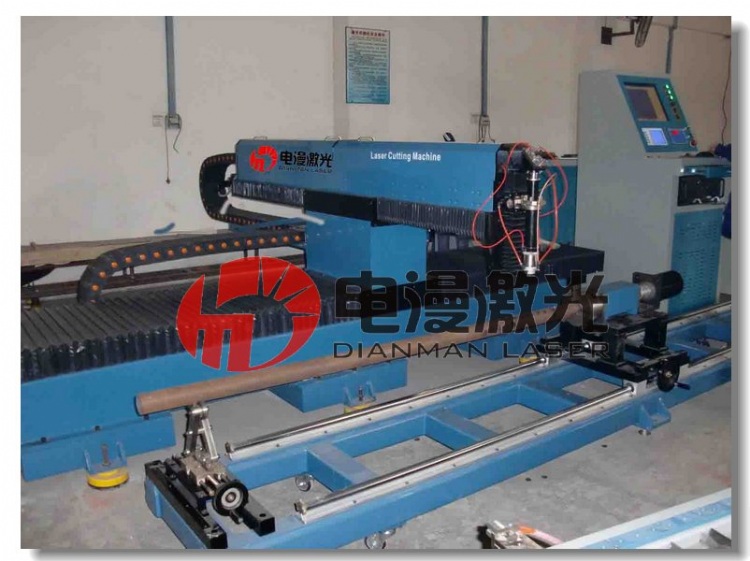

GANTRY TYPE METAL LASER CUTTING MACHINE DM-XY-YAG500
One. High precision: An precise cutting for various precision part, arts and crafts.
Two. Fast speed: 100 times higher than linear cutting
Three. Small heat affected zone, good dimension stability.Flat and handsome laser-slotted, without later process
Four. Steady performance: As a mature laser apparatus, the YAG laser cutting machine is suitable for serial production.
Five. Compared with NC Punch, YAG laser cutting machine have many advantages.
SIX.Euipmented Induction Auto-focus laserhead.
Any complicated structure which can be drawn on the computer also can be manufactured by YAG laser cutting machine.If the product image has be drawn on the computer, the product can be manufactured immediately without opening mould technology.It can be used to develop new products rapidly and reduce cost. Both plan cutting and surface trimming can be finished by automatic tracing system of YAG laser cutting machine.Laser cutting machine can accomplish the complicated process which is hard to achieve by NC punch .The machine can make high grade production with smooth surface, which is hard to obtained by NC punch.The moulded box
(in 0.5 meters thick or less) need to increase holes or slots, CNC punching machine can not do it, but YAG Metal CNC Laser Cutting Machine can.Also this machine equipmented with Induction Auto-focus laserhead.
For detailed information ,pls emai for us or check our website.
www.china-bestlaser.com
Agatha-zhao@hotmail.com
dianmanlaser@yahoo.cn
產品規格
Model: XY-YAG-500
Working size: 1300mm× 2500mm
Cutting thickness: 0.2mm-6mm
Max. output power: 500W
Laser wavelength: 1064nm
Pulse frequency: 1--300HZ
Min. linewidth: 0.15mm
Electrical source: 380V/50HZ/100A
X, Y, Z axis geometric positioning accuracy: ≤ ± 0.05mm/1000mm
X, Y, Z axis re-orientation accuracy: ≤ ± 0.04mm
Machinel weight: 3000KG
Cooling mode: WATER-COOLING
Max. cutting speed: 35mm/s
