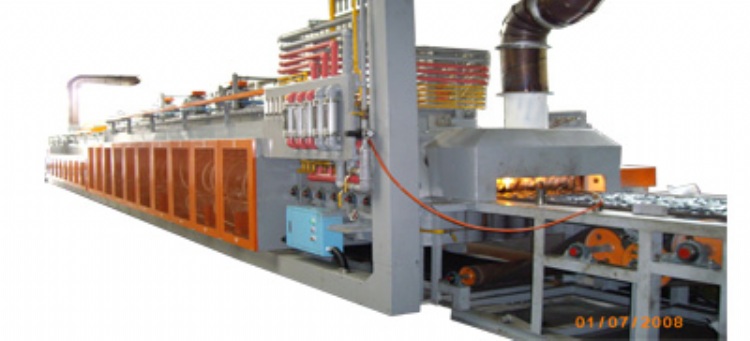

Normalizing / Annealing Mesh-belt Continuous Furnace
產品型號：MH
產品分類：自動化設備/產業機械 / 其他產業機械 / 熱處理爐
產品特色
FEATURES
● Long-life mesh-belt due to roller-transmission
● Automatic temperature zones
● Uniform temperature and atmosphere brought by powerful stirring fans
● With atmosphere control, the quality of products and service life of the furnace are guaranteed
● Thermal effeiciency up to 65% with light-weighted isothermal material design, electricity saving is achieved
● With automatic charging mechanism, high production volume and less labour are achieved
● No special technique is needed once the recipe is set-up
● Specially deisgned heater assembly, easy for maintenance and replacement. Gas-fired and electrical heating are available
USAGE
For the normalizing and annealing of forging parts and casting parts, such as motorcycle parts, automobile parts and tools.
產品規格
Model Number: MH-300 MH-400 MH-600 MH-700
Capacity (kg/Hr): 300 400 600 700
Power (kW): 250 300 450 500
Length (mm): 6000 8000 10000 15000
Mesh-belt Width (mm): 600 800 800 1000
Atmosphere Consumption (m^3/Hr): 30 40 50 60
