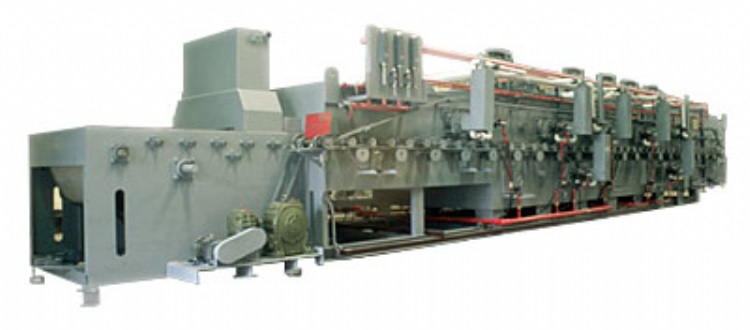

Gas-fred Carburizing / Carbonitriding Mesh-belt Continuous Furnace
產品型號：MHG/NMHG
產品分類：自動化設備/產業機械 / 其他產業機械 / 熱處理爐
產品特色
FEATURES
● Heated by gas burner, short heat-up time
● Easy operation and maintenance
● With Eurotherm carbon probe and carbon controller
● Continuous process adapt to mass production
USAGE
Bright quenching and Carburizing of various kinds of steel such as screws, nuts, spring washer, chain parts, bearing cone, tools, bicycle parts, concrete nails. Mechanieal elements….etc.
產品規格
Carburizing and Quenching Furnaces
* NMHG is all gas-fired
Model Number: MHG-500 MHG-800 NMHG-900 MHG-1000 NMHG-1200 MHG-1500
Capacity (kg/Hr): 500 800 900 1000 1200 1500
Gas Consumption (kg/Hr): 20 35 60 45 65 55
Power (kW): 60 90 0 120 0 150
Length (mm): 8000 8000 8000 9200 9200 12000
Mesh-belt Width(mm): 900 1200 1200 1000 1200 1200
Carrier Gas Consumption (m^3/Hr)
Tempering Furnaces
Model Number: MTG-800 MTG-1000 MTG-1400 MTG-2000 MTG-3000
Capacity (kg/Hr): 8001000 1400 20003000
Gas Consumption (kg/Hr): 20 3660 60 75
Power (kW): 80 720 105 120
Length (mm):8000 9000100001000010000
Mesh-belt Width (mm): 1200 12001500 15002000
