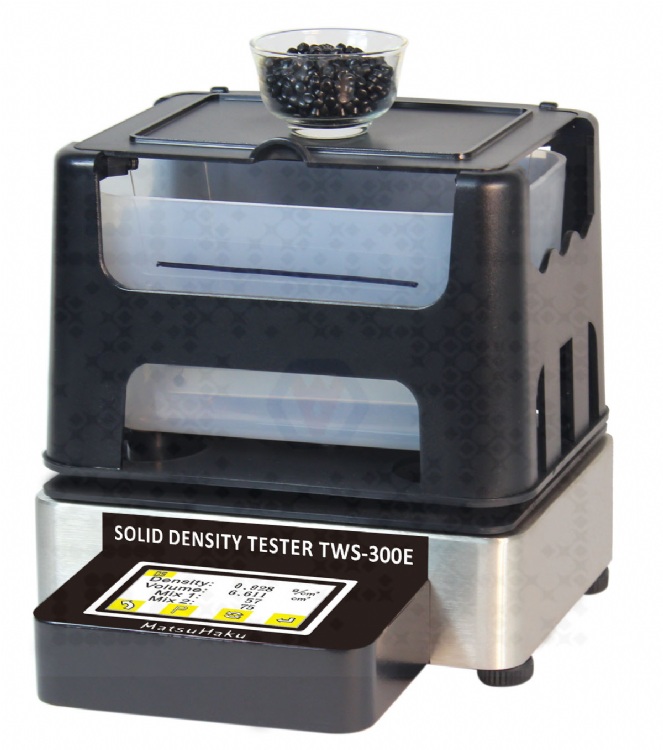

Solid Density Tester TWS-300E
產品型號:TWS-300E
產品分類:自動化設備/產業機械 / 檢測設備 / 檢測、量測設備及其另件
產品特色
Specially for rubber solid materials, general size samples
(length, width and height 148*100*85mm)
Maximum weight: 300g / 600g
Density precision: 0.001g/cm3
產品規格
Suitable for:
Laboratory of solder, brass, bronze, silver, nickel, zinc, plastic, rubber, wire and cable, glass, film, hard alloy, soft synthetic leather, leather, elastic material, oil seal, oil ring, new materials, and other recycling industries.
Principle:
Referring to the standards of ASTM D297, D792, JIS K6530, ISO2781, 1183 and by applying the buoyancy of the object immersed in the liquid and hydrostatics principle, the density, volume, mixture ratio of dense solid materials can be showed.
Function:
1. Density measuring mode DS - measuring density and volume.
2. Mix ratio density measuring mode Mix1- it can get the proportion of the main material.
3. Mix ratio density measuring mode Mix2- it can get the proportion of the second material.
MODEL | TWS-300E | TWS-600E |
---|---|---|
Max Weight : | 300g | 600g |
Weighing Precision : | 0.01g | |
Density Precision : | 0.001g/cm3 | |
Volume Precision : | 0.001g/cm3 | |
Mixing Ratio 1 : | 0.01% | |
Mixing Ratio 2 : | 0.01% |
