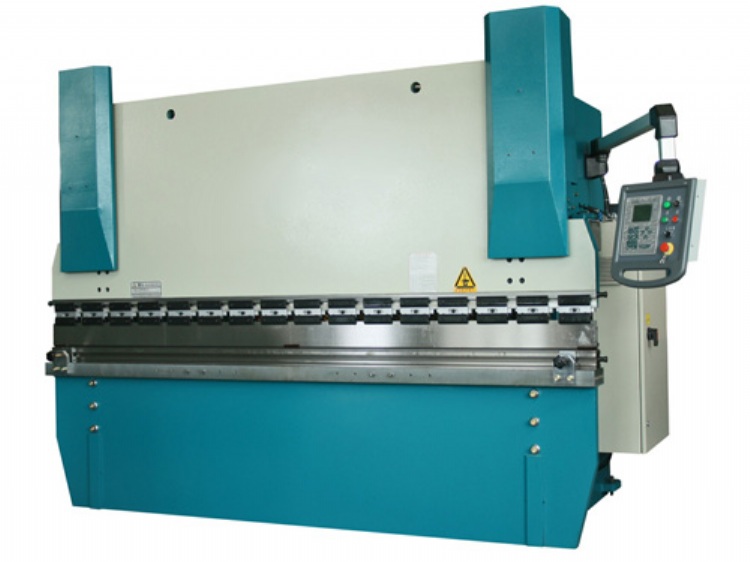

WC67Y-160Ton Hydraulic Press Brake
產品型號:WC67Y-160Ton
產品特色
1.The whole machine is in sheet plate welded structure,with internal stress eliminated by vibration aging technology.high strength and good rigidity of machine.
2.Double hydraulic oil cylinder is applied for upper transmission,provided with mechanical limit stopper and synchronous torsion bar,typical of stable and reliable operation,as well as high precision.
3.Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block,and fitted with digital display device.easy and quick in use.
4.Upper die is fitted with deflection compensation device
Keywords: Hydraulic Press Brakes,
CNC Press Brakes,
Guillotine Shears,
CNC Guillotine Shear,
Swing Beam Shear,
Swing Beam Shearing Machine,
hydraulic press brake manufacturer,
sheet metal press brake for sale,
press brakes supplier,
guillotine shear manufacturer,
Press Brakes
產品規格
160Ton Hydraulic Press Brake
Item WC67Y-160Ton×3200mm WC67Y-160Ton×4000mm
Nominal force(KN) 1600 1600
Worktable length(mm) 3200 4000
Distance between holes(mm) 2600 3000
Depth of throat(mm) 320 320
Slider travel(mm) 200 200
Max open height(mm) 460 460
Main power(Kw) 11 11
Weight(KGs) 10,500 11,500
Overall dimension(L×W×H mm) 3200×1700×2700 4000×1700×2800
Item WC67Y-160Ton×5000mm WC67Y-160Ton×6000mm
Nominal force(KN) 1600 1600
Worktable length(mm) 5000 6000
Distance between holes(mm) 4000 5000
Depth of throat(mm) 320 320
Slider travel(mm) 200 200
Max open height(mm) 460 460
Main power(Kw) 11 11
Weight(KGs) 14,000 19,500
Overall dimension(L×W×H mm) 5000×1900×3100 6300×1900×3200
Relationship between “Ton” and bending thickness:
"Ton" =65×thickness×thickness×length/(width of groove), width of groove= 8×thickness
Ton=65×T2×L/8×T, T=8×Ton/(65×L)
For model WC67Y-160Ton×3200mm
160=65×T2×3.2/8×T, so thickness of normal steel plate T≈6.15mm
The Max metal sheet plate to bend by WC67Y-160Ton×3200mm has size 6.15×3200mm
For model WC67Y-160Ton×4000mm
160=65×T2×4/8×T, so thickness of normal steel plate T≈5mm
The Max metal sheet plate to bend by WC67Y-160Ton×4000mm has size 5×4000mm
For model WC67Y-160Ton×5000mm
160=65×T2×5/8×T, so thickness of normal steel plate T≈4mm
The Max metal sheet plate to bend by WC67Y-160Ton×5000mm has size 4×5000mm
For model WC67Y-160Ton×6000mm
160=65×T2×6/8×T, so thickness of normal steel plate T≈3.3mm
The Max metal sheet plate to bend by WC67Y-160Ton×6000mm has size 3.3×6000mm
