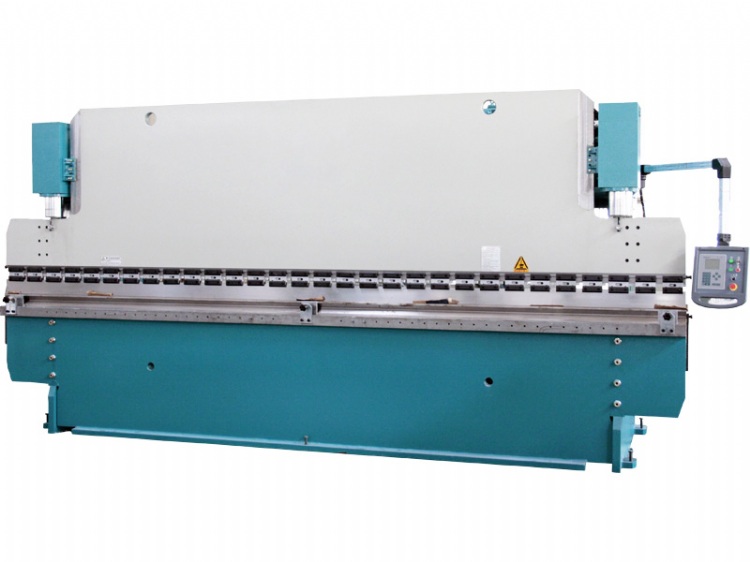

WC67Y-80Ton Hydraulic Press Brake
產品型號:WC67Y-80Ton
產品特色
1.The whole machine is in sheet plate welded structure,with internal stress eliminated by vibration aging technology.high strength and good rigidity of machine.
2.Double hydraulic oil cylinder is applied for upper transmission,provided with mechanical limit stopper and synchronous torsion bar,typical of stable and reliable operation,as well as high precision.
3.Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block,and fitted with digital display device.easy and quick in use.
4.Upper die is fitted with deflection compensation device.
Keywords: Hydraulic Press Brakes,
CNC Press Brakes,
Guillotine Shears,
CNC Guillotine Shear,
Swing Beam Shear,
Swing Beam Shearing Machine,
hydraulic press brake manufacturer,
sheet metal press brake for sale,
press brakes supplier,
guillotine shear manufacturer,
Press Brakes
產品規格
80Ton Hydraulic Press Brake
Item WC67Y-80Ton×2500mm WC67Y-80Ton×3200mm WC67Y-80Ton×4000mm
Nominal force(KN) 800 800 800
Worktable length(mm) 2500 3200 4000
Distance between holes(mm) 1990 2560 3000
Depth of throat(mm) 300 320 320
Slider travel(mm) 100 100 100
Max open height(mm) 320 350 350
Main power(Kw) 7.5 7.5 7.5
Weight(KGs) 5000 6020 7000
Overall dimension(L×W×H mm) 2500×1400×2300 3200×1500×2300 3200×1300×2210
Relationship between “Ton” and bending thickness:
"Ton" =65×thickness×thickness×length/(width of groove), width of groove= 8×thickness
Ton=65×T2×L/8×T, T=8×Ton/(65×L)
For model WC67Y-80Ton×2500mm
80=65×T2×2.5/8×T, so thickness of normal steel plate T≈4mm
The Max metal sheet plate to bend by WC67Y-80Ton×2500mm has size 4×2500mm
For model WC67Y-80Ton×3200mm
80=65×T2×3.2/8×T, so thickness of normal steel plate T≈3mm
The Max metal sheet plate to bend by WC67Y-80Ton×3200mm has size 3×3200mm
