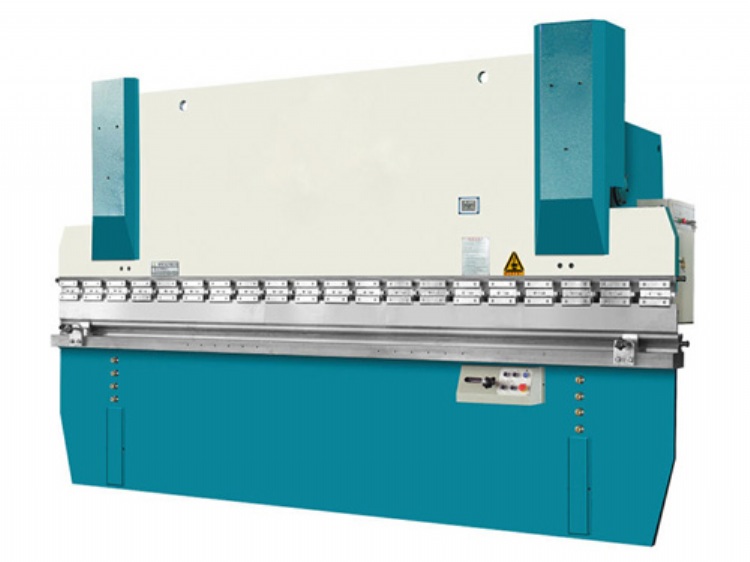

WC67Y-50Ton Hydraulic Press Brake
產品型號:WC67Y-50Ton
產品特色
Characteristics
1.The whole machine is in sheet plate welded structure,with internal stress eliminated by vibration aging technology.high strength and good rigidity of machine.
2.Double hydraulic oil cylinder is applied for upper transmission,provided with mechanical limit stopper and synchronous torsion bar,typical of stable and reliable operation,as well as high precision.
3.Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block,and fitted with digital display device.easy and quick in use.
4.Upper die is fitted with deflection compensation device.
Press Brakes
產品規格
Hydraulic Press Brakes
Item WC67Y-50Ton×2500mm
Nominal force(KN) 500
Worktable length(mm) 2500
Distance between holes(mm) 1850
Depth of throat(mm) 230
Slider travel(mm) 100
Max open height(mm) 320
Main power(Kw) 5.5
Weight(KGs) 3400
Overall dimension(L×W×H mm) 2500×1210×2000
Relationship between “Ton” and bending thickness:
"Ton" =65×thickness×thickness×length/(width of groove), width of groove= 8×thickness
Ton=65×T2×L/8×T, T=8×Ton/(65×L)
For model WC67Y-50Ton×2500mm
50=65×T2×2.5/8×T, so thickness of normal steel plate T≈2.5mm
The Max metal sheet plate to bend by WC67Y-50Ton×2500mm has size 2.5×2500mm
