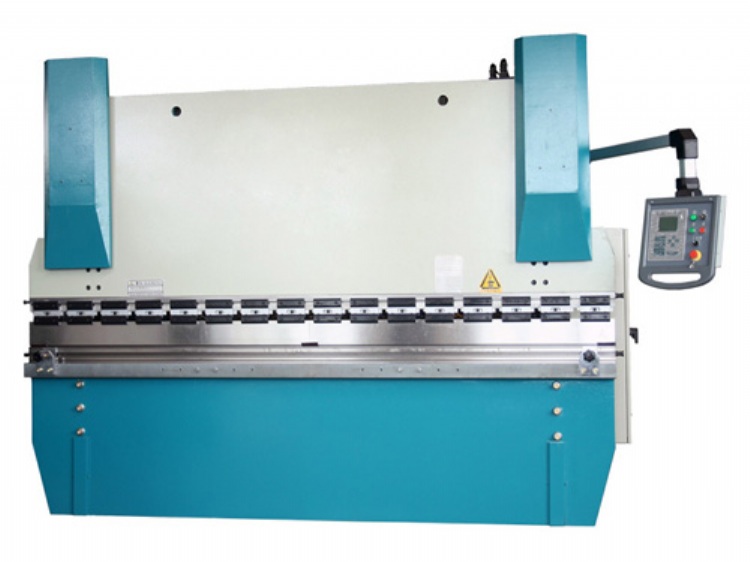

Hydraulic Sheet Metal Press Brake WC67Y-40Ton
產品型號：WC67Y-40Ton
產品特色
1.The whole machine is in sheet plate welded structure,with internal stress eliminated by vibration aging technology.high strength and good rigidity of machine.
2.Double hydraulic oil cylinder is applied for upper transmission,provided with mechanical limit stopper and synchronous torsion bar,typical of stable and reliable operation,as well as high precision.
3.Electrical control and manual fine-tuning mode are adopted for distance of rear stopper and stroke of gliding block,and fitted with digital display device.easy and quick in use.
4.Upper die is fitted with deflection compensation device.
Press Brakes
產品規格
Hydraulic Press Brake,
Item WC67Y-40Ton×2200mm WC67Y-40Ton×2500mm
Nominal force(KN) 400 400
Worktable length(mm) 2200 2500
Distance between holes(mm) 1850 1850
Depth of throat(mm) 230 230
Slider travel(mm) 100 100
Max open height(mm) 320 320
Main power(Kw) 5.5 5.5
Weight(KGs) 2750 3000
Overall dimension(L×W×H mm) 2200×1200×1910 2500×1200×1910
Relationship between “Ton” and bending thickness:
"Ton" =65×thickness×thickness×length/(width of groove), width of groove= 8×thickness
Ton=65×T2×L/8×T, T=8×Ton/(65×L)
For model WC67Y-40Ton×2200mm
40=65×T2×2.2/8×T, so thickness of normal steel plate T≈2.24mm
The Max metal sheet plate to bend by WC67Y-40Ton×2200mm has size 2.24×2200mm
For model WC67Y-40Ton×2500mm
40=65×T2×2.5/8×T, so thickness of normal steel plate T≈2.00mm
The Max metal sheet plate to bend by WC67Y-40Ton×2200mm has size 2×2500mm
