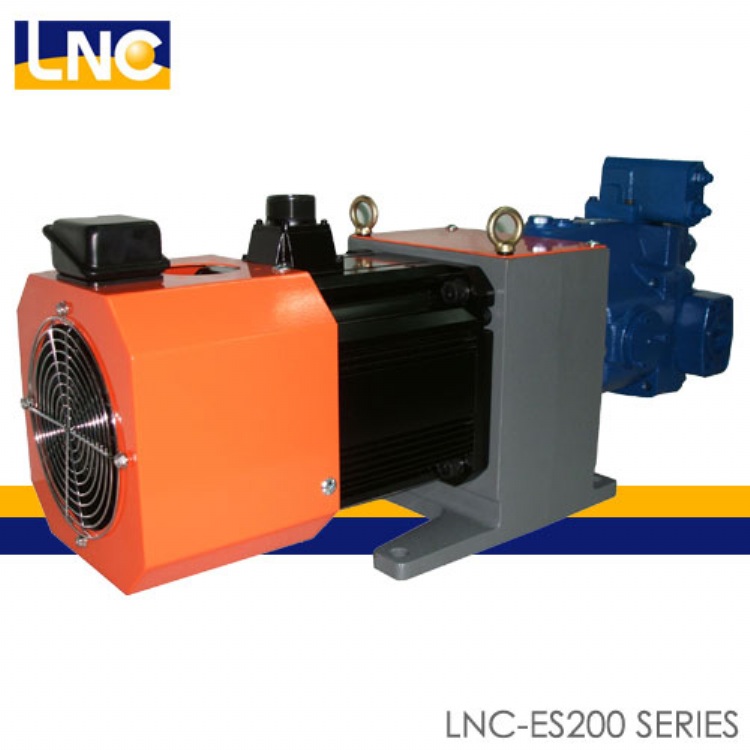

LNC Energy Saving System：ES200 For Injection Molding Machine
產品型號：LNC-ES200
產品特色
Special design of ES200 Hydraulic Servo Energy-Saving Control System
In accordance with your machine requirement,
Improving the efficiency of energy saving equipment to the ultimate.
ES200 can let your system temperature to go down significantly and extend the cycle of changing oil. Also it can reduce the consumption of cooling water to prolong life of hydraulic elements.
6.ES200 doesn't have high voltage energy saving movement and can reduce noise to offer a comfortable working enviroment for operators
Motor-
1.Easy structure, reliable operation, small size, low loss and high efficiency.
2.High-performance NdFeB Magnet is multi-polar magnetic rotor type.
3.Low rotation of inertia to ensure system’s high dynamic response requirements.
4.High power density, high-efficiency drive, broad range of speed control.
5.Resolver feedback component is very durable and anti-interference.
Drives-
1.Programmable output.
2.Protection setting when motor overload.
3.Encoder input connect.
4.Fuse protection.
5.8 parameter sets, 14 parameter groups.
6.Programmable simulation input and digital output.
7.Adjustable slope balance.
Internal Gear Pump-
1.High pressure, efficiency, low noise.
2.Special compensation device, low loss.
3.Low flow ripple output.
Variable displacement Piston Pump-
1.Variable flow control to reduce energy losing while on pressure holding.
2.Suitable for long-time high pressure holding movements.
3.Rigid high speed, low friction construction, long life.
