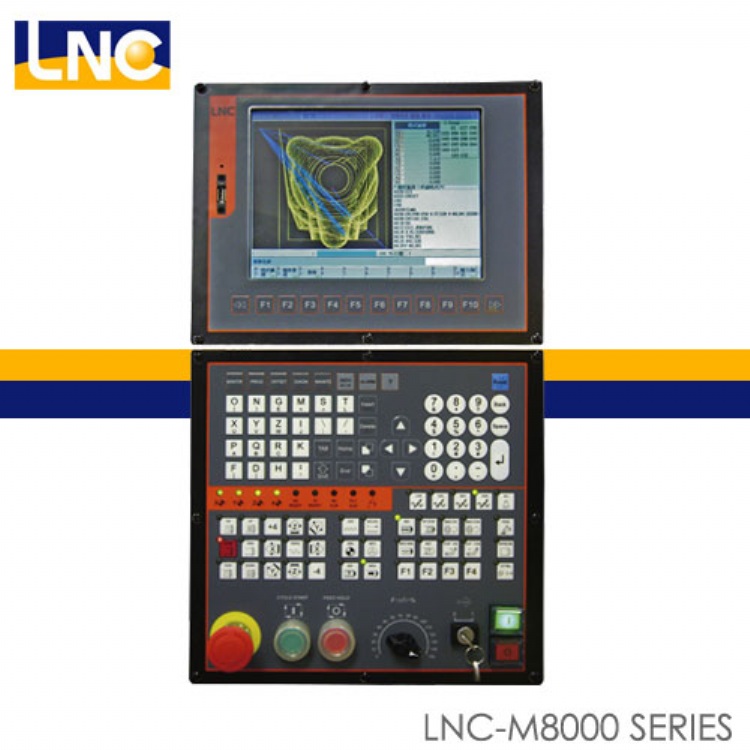

LNC CNC Controller M8000 Series
產品型號：LNC-M8000 Series
產品分類：自動化設備/產業機械 / 機械用自動控制電路設計及安裝 / CNC控制器，工具機及產業機械用
產品特色
Based on many years of developing experience on CNC machine controller, LNC has developed the latest technology of high performance Linux CNC controller.
With Linux real-time kernel technology, LNC-M8000 series can offer users the greatest motion control ability to achieve high speed & high precision demand, also offer functions of single block preview, Jerk control, corner deceleration, and hybrid control.
LNC-M8000 series provide 6 independent path, and control axes can be up to 32 axes.
Control path: 6 path
Control axes: 32 axes
OS: Linux
Display monitor: 10.4" TFT LCD
DPI: 800X600
Program input mode: USB drive
System memory: 512 MB(default)
Program preview: Yes
Min. command unit: 0.1um / 0.001°/ 0.00001inch
High speed/precision mode: VHSP
Single block preview: 600 Blocks
Single block superposition: 5 Blocks
Curve rate speed limit: Yes
Quick orientation(G00): Yes
Linear interpolation(G01): Yes
Arc interpolation(G02/03): Yes
Feedrate per minute(G94): Yes
Feedrate per revolution(G95): Yes
