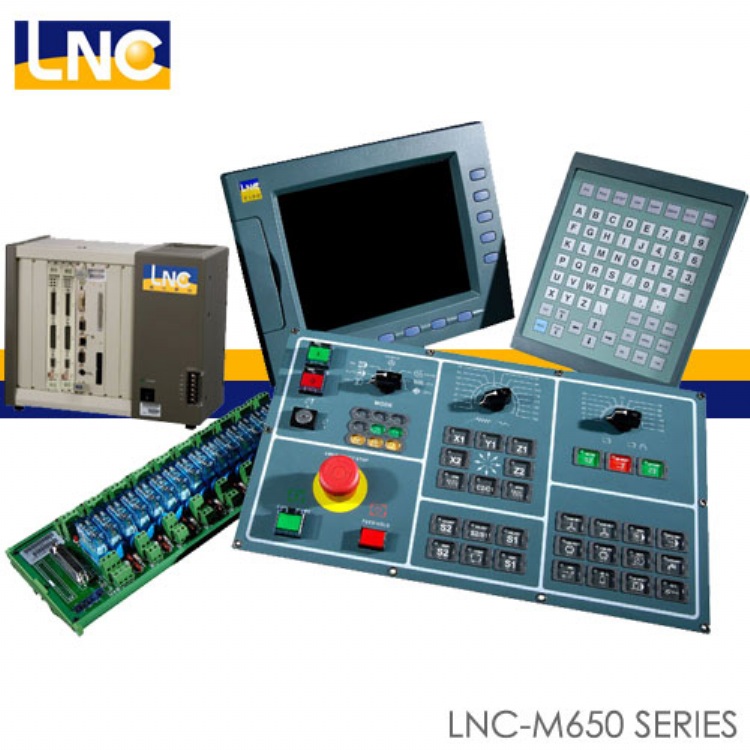

LNC CNC Controller M650 Series
產品型號：LNC-M650 Series
產品分類：自動化設備/產業機械 / 機械用自動控制電路設計及安裝 / CNC控制器，工具機及產業機械用
產品特色
3+1+1 axes pulse control
3+1+1 axes voltage control
MPG control (Optional)
Inner CF card
10.4" TFT LCD
Screensaver Function
RS232/ Ethernet DNC
Transit board circuit protection(24V, 5V, OT fuse)
IO Module(40IN/32OUT, or 60IN/48OUT, expandable up to 120IN/96OUT)
Mechanical high quality operation panel
Absolute encorder with serial communication
Dedicated power supply module for the system's 5V, 12V
Module desigh of controller parts, convenient for installation and expansion
Easy wiring, high performance, low price
This controller did not have 5 axes shape control and cutting function, only suitable for
industrial machines.
This controller did not have 5 axes TCP tool tip compensation functions.
This controller did not have rotation axes speed planning function.
This controller did not have 5 axes machining center interference anti-collision check function.
