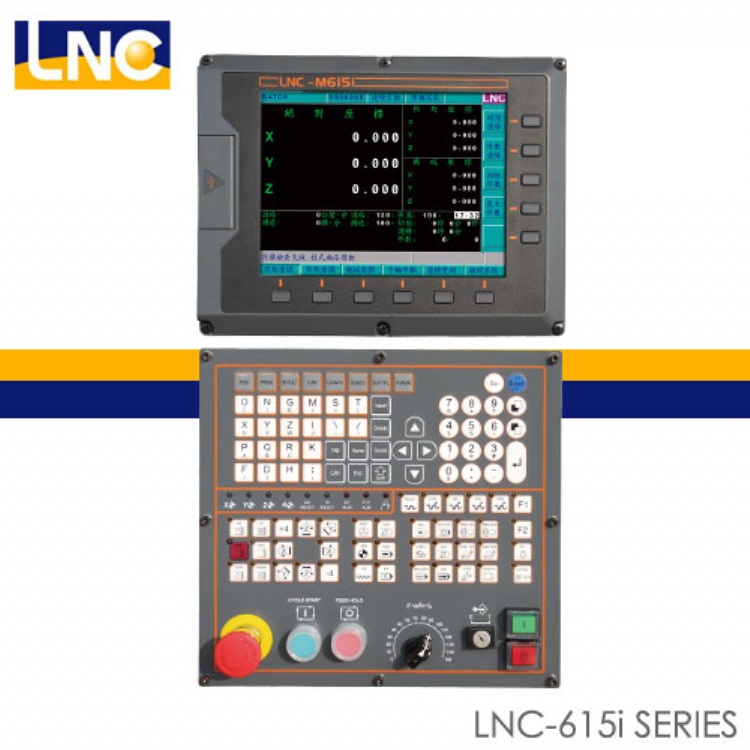

LNC CNC Controller T/M615i
產品型號：LNC-T/M615i
產品分類：自動化設備/產業機械 / 機械用自動控制電路設計及安裝 / CNC控制器，工具機及產業機械用
產品特色
The New CNC Controller, lighter, high texture
The next generation of LNC controller, rocking with an uniqle stylish operation panel, an outstanding 3D appearance, front USB device for data storage, and larger screen in 10.4 inch LCD monitor for your viewing pleasure. Your best solution for lathe, milling, and machining center.
LNC-615i is a brand new product with whole new appearance, this model is very suitable for machining center to install. LNC-615i offers solution for 3 servo axes and 1 spindle or 2 servo axes and 2 spindle. Machine makers can also select different operation panel for their own usage or customized version is also available.
System configuration
System: ELCLCD-3503
Operation Panel: MDIOP-8500/8501/8510
MPG control
Relay board 2840
ELC-2601
Lathe: 3 servo axes +1 spindle or 2 servo axes +2 spindle
Milling version: 3 servo axes +1 spindle
Axes command format : Pulse command(standard), V command (optional)
With spare MPG port, external MPG is possible.
I/O: 20 I/16 O, can be up to 128I/128 O
10.4" LCD Monitor
RS232 Ethernet DNC
Easy wiring, high speed high precision, all in one type.
We offer USB interface on the front of LCD.
MDIOP-85XX
MDI+OP version, also offers multiple selection for you
MDI is half key for easy control
