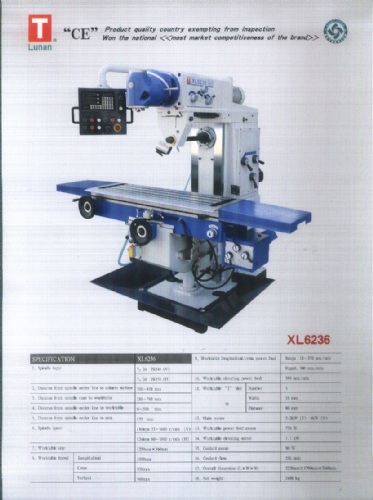

Universal Swivel Head Milling machine (XL6236)

Specification:
Table size: 360*1250
Worktable travel (longitudinal/cross/vertical):1000/320/500
Worktable power feed (longitudinal/cross):8steps 15~370mm/min rapid: 540mm/min
Worktable elevating power feed: 590mm/min
Horizontal spindle: ISO 50
Universal Spindle: ISO40
Distance from spindle center line to column surface: 350~850mm
Distance from spindle nose to worktable: 210~710mm
Distance from spindle center line to worktable: 0~500mm
Distance from spindle center line to arm: 175mm
Spindle speed(universal) :11 steps 35~1600r/min
Spindle speed (horizontal): 12steps 60-1800 r/min
Worktable T slot (number/width/distance):3/18mm/80mm
Main motor: 2.2kw (U)/4kw (H)
Feed motor power: 750w
Elevating motor: 1.1KW
Coolant pump: 90w
Coolant flow: 25L/min
Overall dimension: 2220*1790*2040mm
Net weight: 2400kgs
