產品規格

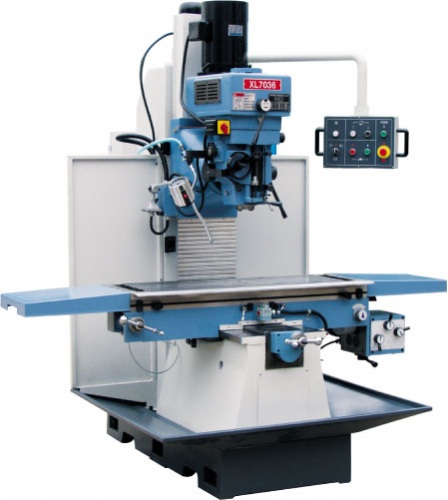

XL7036

Model XL7036
Spindle taper ISO40
Distance from vertical spindle nose to table(mm) 100-600
Distance from spindle to guideway of column(mm) 450
Range of spindle speed(r.p.m, steps) 80-5440(16),
Feed of quill(mm/r, steps) 0.04,0.08,0.15(3)
Table Size(mm) 1250X360
Table travel(mm) Horizontal 1000
Cross 420

Up/down speed of sindle(mm/min) 2000
Range of longitudinal,cross travel(mm/min) 15~370/(MAX.540)
Z speed of table(mm/min) 560
T-slot of table(Number-Width-Length)(mm) 3-18-80
Main motor(Kw) 3.7
Coolant pump motor(Kw) 90
Speed of coolant pumps(L/min) 25
Overall dimension(mm) 1700X1480X2150
G.W/N.W(Kg) 1600/1450
