產品規格

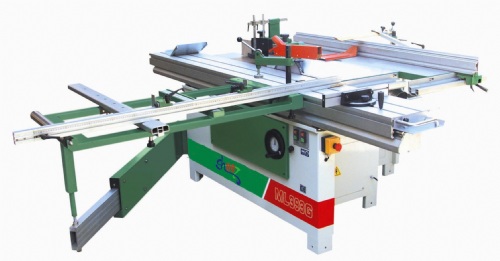

Combine Woodworking Machine
Style: ML394G 　
1.1 Surface Planning 　
　 　
Arbor Cutting Dia. 74mm
Spindle Speed 5400r/min
Blade size 410x30x3mm
Max.planning width 400mm
Length of the worktable 1700mm
Max.removal 3mm
Braking time of the spindle <=9s
Tilting angle for the guide runner 90degree,45degree
Motor 3HP 230V 50Hz
Diameter for the dust exhausting 120mm
　 　
1.2 Pressing thickness 　
　 　
Max.pressing width 400mm
Thickness of the processing 6-240mm
Max.thickness of the removal 3mm
Min.processing length 130mm
Feeding speed 7.5m/min
Diameter for the dust exhausting 120mm
　 　
1.3 Circular saw 　
　 　
Permitting saw dia. 305mm
Speed for the saw spindle 3500r/min
Saw spindle dia 30mm
Braking time of the spindle <=9s
Max.sawing thickness(with hood): 　
Vertical position 90mm
Tilting Position at 45degree 45mm
Max. crosscutting width 2800mm
Diameter of the dust exhausting for sawing 100mm
Diameter of the dust exhausting over the saw 40mm
Motor 3HP 230V 50HZ
　 　
1.4 Milling 　
　 　
Dia. for Milling Spindle 30mm
Max. height of milling spindle extending outside the worktable 115mm
Useful and workable height of milling spindle 85mm
Max. rotating diameter for the spindle extending down below the table 140mm
Max. depth for the spindle extending down below the table 40mm
Spindle speed 1750mm/min or 3500mm/min or 6700r/min
Braking time of the milling spindle <=9s
When using the hood of the vertical milling guide: 　
Max.rotating dia.of milling tool 180mm
Diameterr for the dust exhausting 100mm
When using the moulder hood: 　
Max.rotating dia. of the tool 140mm
Diameter for the dust exhausting 100mm
Motor 3HP 230V 50HZ
Size for the square workable(for crosscutting or mortising 520x1080mm
　 　
1.5 Scorer 　
　 　
Size of the blade MVF-120-24(22)mm
Speed 7000r/min
　 　
1.6 Drilling 　
　 　
Drilling dia. 16mm
Max.drilling depth 80mm
　 　
1.7 Other Datas: 　
　 　
Weight of the machine 725kg
Outer size of the machine 3240 x 2500 x 1130mm
