產品規格



Special Features:

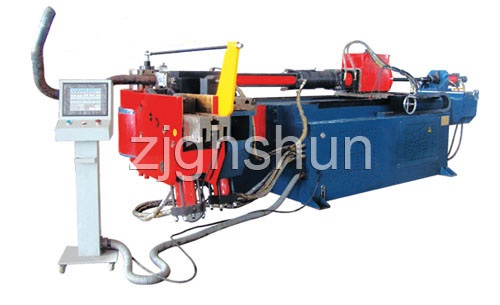

1. NCMP type machines all use touch-screen and PLC control.
2. Manual, semi-automatic and fully automatic are available.
3. Multiple protective devices secure the safety of users.
4. Auto detective and error movement indicating functions prevent machine to be damaged by wrong operating
5. Mobile pedal switch and side emergency stop switch provide more protection.
6. The cooling system makes the machine running steady.
7. The quick tooling change system is favor of production.
8. High-rigid mechanism enables to reduce the interference area.
9. The touch-screen displays the movement situation of the machine and bending angle.
10. Programmable auto detective and breakdown message display, shown the wrong and error information in the screen.
11. With co-push functions.
12. Servo motor (MITSUBISHI) for angle rotation.
13. The circuit signal lines use modularized plugs, easy to replace and repair.
14. Build-in battery enables to keep inside data for 3 years memory after turned off machine.
15. Code protection function guard the program and process data.

Key Specifications:
1. Max bending capacity: φ 130mm X 10mm
2. Bending radius: 90-520mm
3. Standard length over mandrel: 4500mm
4. Max feeding length: 3800mm
5. Max bending angle: 190 degree
6. Bending speed: 30 degree/s
7. Rotating speed: 130 degree/s
8. Bending accuracy: ± 0.15 degree
9. Rotating accuracy: ± 0.1 degree
10. Power of motor: 22 kw
11. Working Pressure: 14 mpa
12. Size: 6500x1900x1300mm
13. Weight: 8000kg

Standard Accessories:
1. Tool Kit
2. Tooling Package
3. Manual Book

Primary Competitive Advantages:
1. Country of Origin
2. Experienced Technical Staff
3. Form A
4. Guarantee/Warranty
5. Price
6. Product Performance
7. Quality Approvals
8. Service
