Special Features:

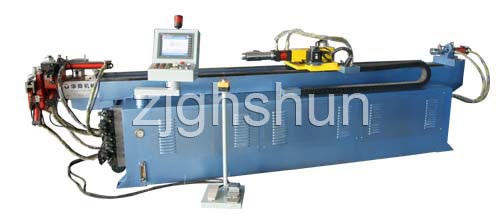

1. Fully automatic and cost effective CNC tube bender
2. Equipped with 3 programmable axis
3. Feeding: Servo motor
4. Rotation: Servo motor
5. Bending: Hydraulic (NC)
6. Hydraulic pressure die assist for every bending stack
7. Mandrel lubricating system
8. Wiper, clamping and pressure die seats
9. Centralized greasing system for moving areas
10. Electric cabinet cooling fan
11. Touch screen system
12. CNC 2 servo controlled axes with NC hydraulic bending
Fully automatic and cost effective

Key Specifications:
Max. Bending capability: ø 38.2 x 2.0t
Max. Bending radius: 180mm
Max. Bending angle: 210°
Standard effective mandrel length: 2200mm
Bending speed: 100° /s
Rotation speed: 220° /s
Feeding speed: 1200mm/s
Bending precision: ± 0.1
Rotation precision: ± 0.1
Feeding precision: ± 0.1
Total power: 5.5Kw
Max. Pressure: 12Mpa
Size: 3900x1000x1200mm
Weight: 1800Kg

Standard Accessories:
1. Tool Kit
2. Tooling Package
3. Manual Book

Primary Competitive Advantages:
1. Country of Origin
2. Experienced Technical Staff
3. Form A
4. Guarantee/Warranty
5. Price
6. Product Features
7. Product Performance
8. Quality Approvals
9. Reputation
10. Service
11. Small Orders Accepted
