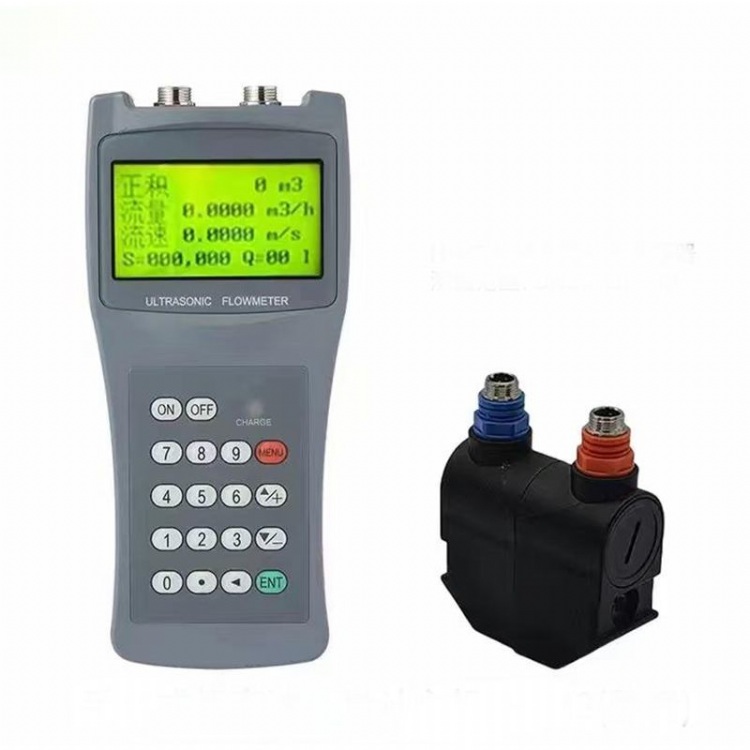

Handheld ultrasonic flow meter
產品型號：Handheld ultrasonic flow meter
產品分類：零組件配件 / 機械零件（零組件） / 一般機器用剎車來令片
產品特色
Handheld ultrasonic flow meter
產品規格
Handheld Ultrasonic Flow Meter is the smallest volume, the lightest weight, the most advanced technology of a flow inspection instrument. With high measurement accuracy, measurement stability, repeatability, battery-powered, easy to operate, easy to carry. Internal memory for measured data, with communication interface to compute connection for data export to computer. Widely used in industrial field of various liquid flow online calibration and inspection measurements.
Advantage
Accuracy can reach ±1%;
Suitable for all variable sizes of pipes flow metering;
Suitable for steel, stainless steel, cast iron, PVC, FRP, etc. uniform and compact of pipeline;
Built-in Ni-H rechargeable battery can work continuously more than 10 hours;
Small size and portable weight, easy to carry.
Specifications
|
Parameter |
Description |
|
Linearity |
0.5% |
|
RepeatabiIity |
0.2% |
|
Accuracy |
±1% of reading at rates>0.2 mps |
|
Response Time |
0-999 seconds, user-configurabIe |
|
VeIocity |
± 32 m/s |
|
Pipe Size |
20mm-6000mm |
|
Rate Units |
Meter, Feet, cubic Meter, Liter, cubic Feet, USA GaIIon, ImperiaI GaIIon, oiI BarreI, USA Liquid BarreI, ImperiaI Liquid BarreI, MiIIion USA GaIIons. User configurabIe. |
|
TotaIizer |
7-digit totaIs for net, positive and negative fIow respectiveIy |
|
Liquid Types |
VirtuaIIy aII Iiquids |
|
Security |
Setup vaIues Modification Lockout. Access code needs unIocking |
|
DispIay |
4x8 chinese characters or 4x16 EngIish Ietters |
Applications
The handheld pipe water flow meter can be virtually applied to a wide range of measurements. A variety of liquid applications can be accommodated: ultra-pure liquids, potable water, chemicals, raw sewage, reclaimed water, cooling water, river water, plant effluent, etc.
