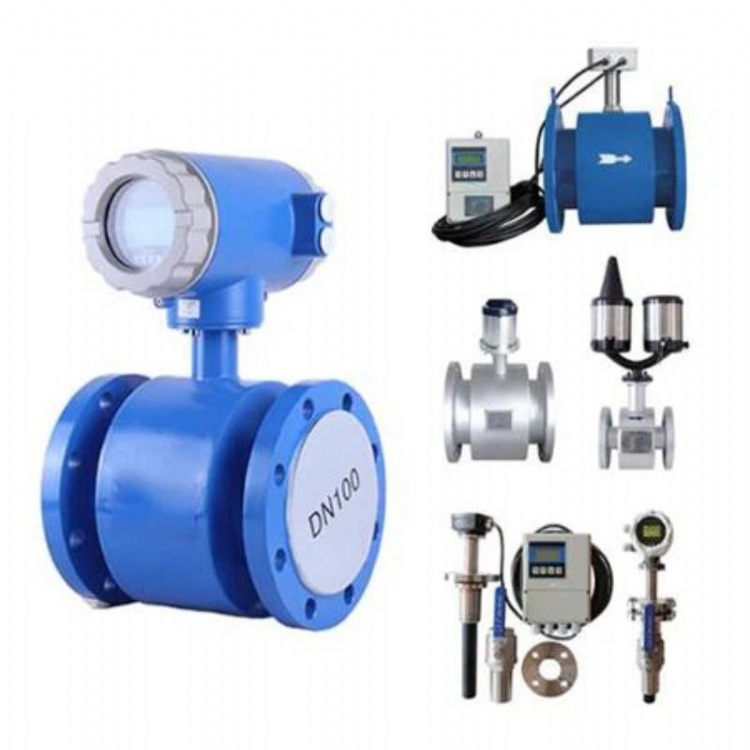

Electromagnetic Flow Meter
產品型號：Electromagnetic Flow Meter
產品分類：零組件配件 / 機械零件（零組件） / 一般機器用剎車來令片
產品特色
Electromagnetic Flow Meter
產品規格
Electromagnetic flow meter, a type of industrial instrumentation, is one of the oldest and most widely used industrial instruments. Which is reliable and economical water flow measurement technology. Compact type, split type, split waterproof type, battery supply type, plug-in type, various styles available.
Advantage
No moving parts or flow obstructions, virtually eliminating maintenance and pressure drop.
Accuracy readings up to +0.50% of measured value.
Wide pressure drop ratio provides a wide flow range for a variety of applications.
Specifications
|
Parameter |
Description |
|
Accuracy |
±0.5% |
|
Damping Time |
0.2~100s select able |
|
Analog Output |
Bi-directional, isolated 0~10mA/4~20mA. |
|
Protection Class |
For electronic box IP65 (outdoor) or IP 67 (optional) |
|
Lining Material |
Rubber, PTFE, Polyurethane, PFA |
|
Electrode Type |
General type, scraper type or replaceable type |
|
Electrode Material |
316L SS, Hastelloy B, Hastelloy C, Titanium, Tantalum |
|
Sensor Material |
Measuring tube Stainless steel |
|
Medium Temperature |
Integral type -10°C~+80°C (14°F~176°F) Remote type -10°C~+150°C (14°F~302°F) |
Electromagnetic Flow Meter Application
Widely used in petroleum, chemical industry, iron and steel metallurgy, water supply and drainage, water irrigation, water treatment, environmental protection, sewage measurement and control, paper making, medicine, food and other industrial and agricultural production process flow measurement and control.
