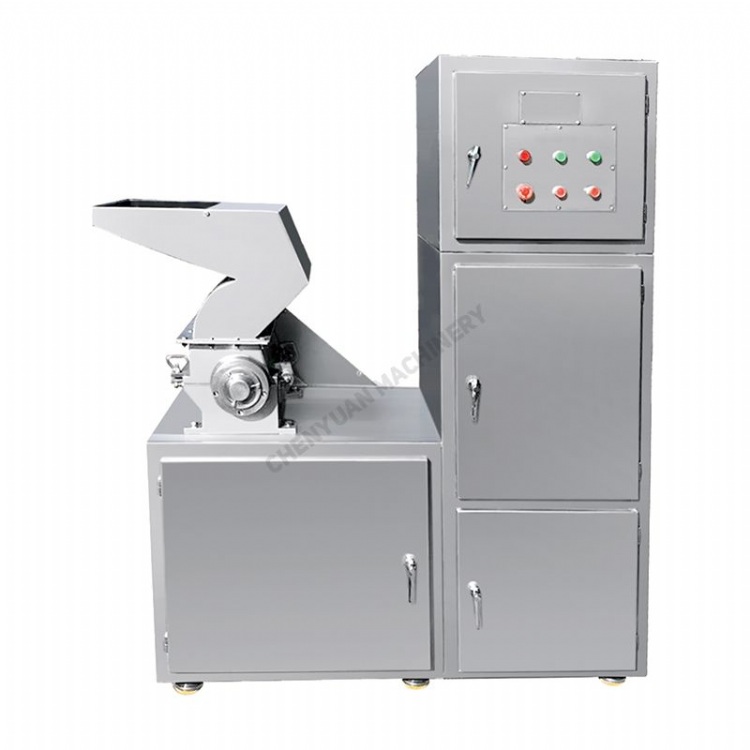

CSJ Coarse Crusher With Dust Collector
產品型號：CSJ Coarse Crusher With Dust Collector
產品分類：自動化設備/產業機械 / 其他產業機械 / 產業機械零配件
產品特色
CSJ Coarse Crusher With Dust Collector
產品規格
MAIN PURPOSE
This machine is a new type of horizontal coarse crushing machinery newly developed and carefully developed by our factory. It is widely used in chemical, pharmaceutical, electronics, food, rubber, plastic and other industries. As a special equipment for the rough material, it can be crushed on hard, hard-to-crush materials including plastic and rubber. In particular, it is not subject to the viscosity, hardness, softness and fiberiness of the material, and can achieve a good pulverization effect.
TECHNICAL PARAMETER
| Model | Main dimensions(mm) | Production capacity (kg/h) |
Feeding granularity (mm) |
Discharging mesh numbers (mesh) |
Spindle rotation speed (pm) |
Total power (W) |
Weight (kg) |
||
| Length(L) | Width(W) | Height(H) | |||||||
| CSJ-200 | 1300 | 700 | 1750 | 50-200 | ≤100 | 0.5-20 | 650 | 3.75 | 320 |
| CSJ-300 | 1300 | 900 | 1750 | 80-300 | ≤100 | 0.5-20 | 650 | 4.75 | 400 |
| CSJ-400 | 1400 | 1200 | 1750 | 100-500 | ≤100 | 0.5-20 | 650 | 6.25 | 500 |
| CSJ-500 | 1400 | 1200 | 1850 | 120-700 | ≤100 | 0.5-20 | 650 | 8.6 | 700 |
| CSJ-600 | 1500 | 1300 | 1850 | 150-1000 | ≤100 | 0.5-20 | 650 | 12.1 | 900 |
