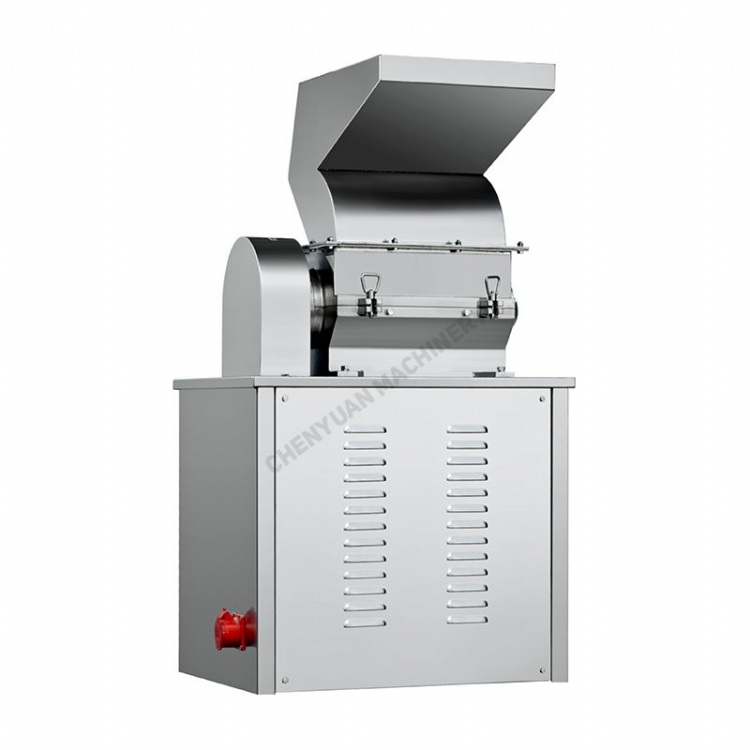

CSJ Industrial Grinder Machine
產品型號：CSJ Industrial Grinder Machine
產品分類：零組件配件 / 機械零件（零組件） / 切削中心機自動換刀系統 ATC
產品特色
CSJ Industrial Grinder Machine
產品規格
The machine is a horizontal pulverizing structure, and the material enters the pulverizing chamber from the hopper, and is pulverized by the impact and shearing of the rotating knives and the fixed knives. The material automatically flows to the exit by the action of the rotating centrifugal force. The machine is designed according to the "GMP" standard. The whole machine is made of stainless steel. It has simple structure, convenient cleaning and low noise. It is the most ideal equipment for coarse crushing.
TECHNICAL PARAMETER
| Model | Main dimensions(mm) | Production capacity (kg/h) |
Feeding granularity (mm) |
Discharging mesh numbers (mesh) |
Spindle rotation speed (pm) |
Total power (W) |
Weight (kg) |
|||
| Length(L) | Width(W) | Height(H) | Countertop(H) | |||||||
| CSJ-200 | 580 | 750 | 1200 | 900 | 50-200 | ≤100 | 0.5-20 | 650 | 3 | 220 |
| CSJ-300 | 800 | 750 | 1250 | 1000 | 80-300 | ≤100 | 0.5-20 | 650 | 4 | 300 |
| CSJ-400 | 900 | 750 | 1300 | 1100 | 100-500 | ≤100 | 0.5-20 | 650 | 5.5 | 420 |
| CSJ-500 | 980 | 750 | 1650 | 1300 | 120-700 | ≤100 | 0.5-20 | 650 | 7.5 | 580 |
| CSJ-600 | 1200 | 1000 | 1700 | 1550 | 150-1000 | ≤100 | 0.5-20 | 650 | 11 | 750 |
