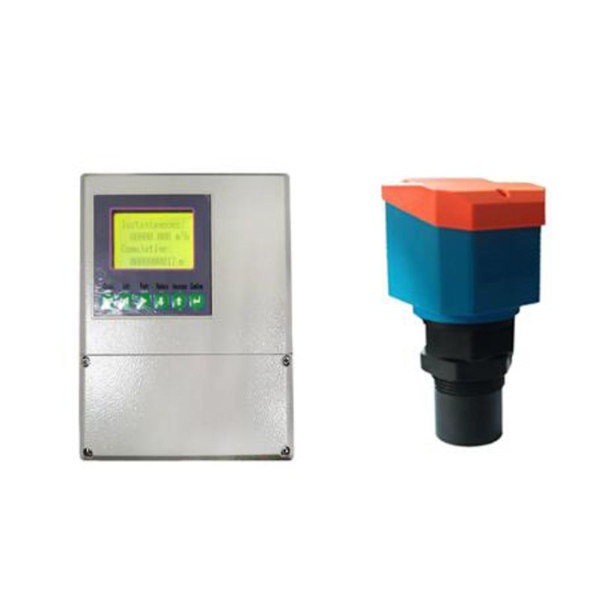

Ultrasonic Open Channel Flow Meter
產品型號：Ultrasonic Open Channel Flow Meter
產品分類：零組件配件 / 機械零件（零組件） / 一般機器用剎車來令片
產品特色
Ultrasonic Open Channel Flow Meter
產品規格
Mainly used for flow measurement in standard channels and weirs. Non-contact measurement, the product is durable and affordable. Compact type, split type, split waterproof type, various styles available.
Ultrasonic Open Channel Flow Meter Advantages
Built-in multiple algorithms for various standard water channels.
Split waterproof type or compact type, a variety of options, more convenient to use.
Blind area can be manually set to shield the interference signal near the probe.
Transducer built-in temperature sensor, real-time automatic temperature compensation.
Specifications
|
Parameter |
Description |
|
Applicable |
Parshall flume, rectangular weir, equal width weir, triangular weir |
|
Voltage |
Standard 24V DC/220V AC |
|
Output |
4-20mA/RS485/RS232 |
|
Wiring |
4-wires connection of transducer and transmitter (maximum transmission distance 100m) |
|
Blind zone |
0.25-0.45m, the blind zone is inherent |
|
Velocity |
10L/s~10m³/s（Determined by the type and specification of the flume） |
|
Protection level |
IP68/IP65 |
|
Thread size |
M66*3 |
|
Opening |
68mm |
|
Transducer material |
High strength engineering nylon |
|
Transmitter material |
Cast aluminum |
Gallop channel flow meters integrate cutting-edge technology for unparalleled performance. Our focus on non-contact solutions ensures long-term reliability, while the intuitive interface simplifies operations for field engineers. With robust construction and advanced ultrasonic sensors, these meters are built to perform in the toughest environments.
