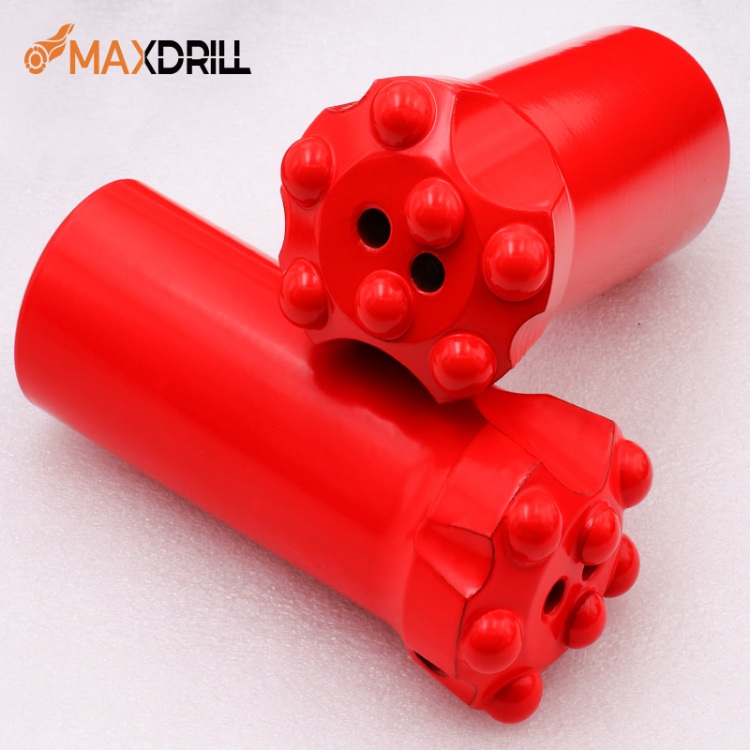

Maxdrill R32 64mm Button Bit for Mining
產品型號:3048R3209-66
產品分類:工具機產業機械 / 工具,刀具,模具 / 碳化鎢工具、刀具
產品特色
Thread button bits made with high quality of best quality alloy steel bar and tungsten carbides, through heat treatment so that it can withstand the toughest rock drilling demands, and transmit intensive impact energy into the rock with the least possible loss of energy.
產品規格
产品,描述
| 尺寸 | 排水孔(mm) | 齿(mm) | 角 | 级别 | 图号 | |||
| mm | in | Front No Size | Gauge No Size | 顶齿尺寸 | 边齿尺寸 | |||
| 45 | 1 3/4 | 1x5.5 | 2x5.5 | 2x9 | 5x11 | 30° | H | 3045R3207-66 |
| 48 | 1 7/8 | 2x6 | 1x5 | 2x9 | 5x11 | 30° | H | 3048R3207-66 |
| 51 | 2 | 2x6 | 1x5.5 | 2x10 | 5x11 | 30° | H | 3051R3207-66 |
| 43 | 1 11/16 | 2x5 | 2x5 | 2x8 | 6x9 | 30° | S | 3043R3208-66 |
| 45 | 1 3/4 | 2x5 | 2x5 | 2x9 | 6x10 | 30° | S | 3045R3208-66 |
| 48 | 1 7/8 | 2x5.5 | 2x5 | 2x9 | 6x10 | 30° | S | 3048R3208-66 |
| 43 | 1 11/16 | 3x4 | 2x5 | 3x8 | 6x10 | 30° | M | 3043R3209-66 |
| 45 | 1 3/4 | 3x5 | 1x5 | 3x8 | 6x10 | 30° | M | 3045R3209-66 |
| 48 | 1 7/8 | 3x5 | 1x5 | 3x9 | 6x10 | 30° | M | 3048R3209-66 |
| 54 | 2 1/8 | 3x6 | 1x5.5 | 3x10 | 6x11 | 35° | M | 3054R3209-66 |
| 45 | 1 3/4 | 3x5 | 1x5 | 3x8 | 6x10 | 30° | M | 3045R32F09-66 |
| 48 | 1 7/8 | 3x5 | 1x5 | 3x8 | 6x10 | 30° | M | 3048R32F09-66 |
| 51 | 2 | 3x5.5 | 1x5.5 | 3x9 | 6x11 | 35° | M | 3051R32F09-66 |
| 54 | 2 1/8 | 3x6 | 1x5.5 | 3x10 | 6x11 | 35° | M | 3054R32F06-66 |
| 57 | 2 1/4 | 3x6 | 1x6 | 3x10 | 6x11 | 35° | M | 3057R32F09-66 |
