產品規格

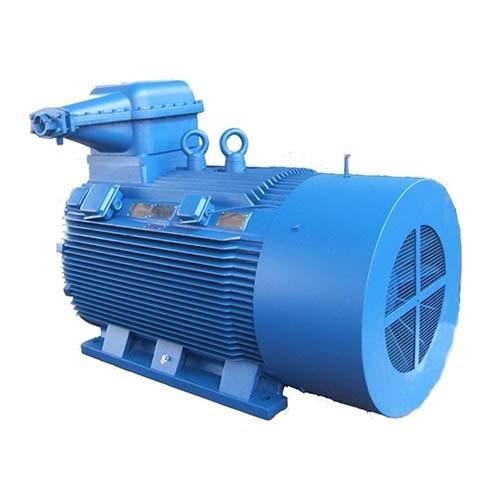

High Efficiency Asynchronous Explosion-Proof Motor

Product Description

YB2 explosion-proof asynchronous AC motor is a kind of motor that can be used in flammable and explosive places, and does not generate electric spark during operation. It is a motor structure that does not generate arcs, sparks or dangerous high temperatures under normal operating conditions, and then takes some mechanical, electrical and thermal protection measures to further avoid arcing, sparking or under normal or approved overload conditions. The danger of high temperatures ensures the safety of explosion protection.

Product Parameters

Motor power range is 0.55-315KW

Rated voltage: 380V, 660V, 1140V, 380/660V, 660/140V.

Rated frequency: 50Hz/60Hz.

Quota: continuous work S1

Explosion-proof signs: ExdI, ExdII AT4, Exd IIBT4, ExdIICT4.

Environmental conditions: The altitude does not exceed 1000m, and the ambient air temperature varies with the season, which is -15~40°C.

Shell protection rating: IP55.

Motor insulation class is F

Cooling method: IC411.

Installation type: B3, B5, B35, V1, etc.

Customized Explosion-Proof Electric Motor:ZCL Electric Motor Technology Co., Ltd.
Feature of Product

YB2 series asynchronous explosion-proof motor, which has the characteristics of high efficiency, energy saving, large starting torque, good performance, low noise, low vibration, high reliability and convenient use and maintenance.

(1) The correspondence between power class, installation size and speed is consistent with DIN42673. Considering the compatibility with the YB series and the interchangeability of the Y2 series, the necessary adjustments are made, which is more effective and applicable.

(2) The whole series adopts Class F insulation, and the temperature rise is assessed according to Class B.

(3) The noise limit is lower than that of the YB series, which is close to the Y-class noise of the YB series, and the vibration limit is equivalent to the YB series.

(4) The enclosure protection level is increased to IP55.

(5) The whole series uses low-noise deep groove ball bearings, and the center of the machine base is higher than 180mm.

(6) There are two types of motor heat sinks: parallel horizontal distribution and radiation distribution, which are mainly parallel horizontal distribution.

If you're in search of premium Explosion-Proof Motors for sale, look no further. ZCL offers a comprehensive selection of robust and high-efficiency motors meticulously engineered to meet stringent safety standards. From explosion-proof motor service to expert guidance, our team is dedicated to providing top-notch solutions tailored to your specific needs.

Explore our cutting-edge Explosion-Proof Motors and experience the unmatched performance and peace of mind they bring to your operations. At ZCL, we prioritize your safety and productivity, making us your trusted partner for all your explosion-proof motor requirements.
