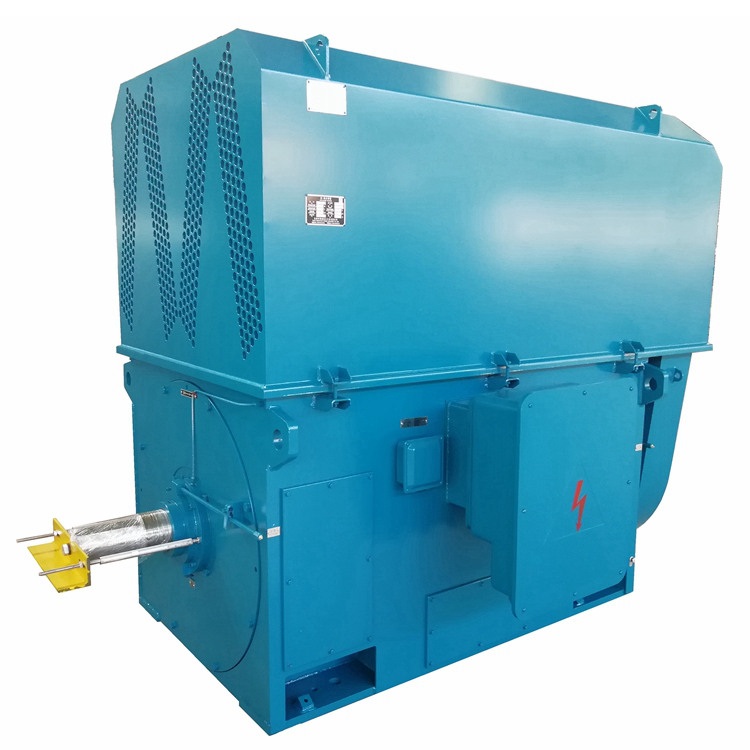

High Voltage Squirrel Cage Induction Motor

YKK series squirrel cage high-voltage three-phase asynchronous Induction motor is a cage-type asynchronous motor with closed air-to-air cooler. This series of motors is rated IP44 or IP54 and the cooling method is IC611.
YKK series high-voltage three-phase asynchronous Induction motor is a cage asynchronous motor with closed air-to-air cooler. The base and end cover are made of steel plate. The box structure is adopted. The top cover can be opened to observe the internal condition of the motor. All components can be disassembled and assembled for convenient installation and maintenance.
YKK high-voltage squirrel cage Induction motor has the advantages of high efficiency, energy saving, low noise, small vibration, light weight, reliable performance, convenient installation and maintenance. Can be used to drive a variety of different machinery. Such as ventilators, compressors, pumps, crushers, cutting machine tools and other equipment, and can be used by coal mines, machinery industry, power plants and various industrial and mining enterprises.
The structure and installation form of YKK series high-voltage squirrel cage asynchronous  Induction motor is IMB3. The quota is continuous rating based on continuous working system (S1). The rated frequency of the motor is 50HZ, the rated voltage is 6KV/10KV, other voltage grades or special requirements are ordered. It can be agreed with the user.

Squirrel Cage High Voltage Motor

Center height range: H355~1000mm

Power range: 185kW to 12000kW

Number of poles: 2/4/6/8/10/12/16

Rated voltage: 3000V/3300V/6000V/66000V/10000V/11000V

Rated frequency: 50HZ/60HZ

Protection level: IP54 or IP55

Insulation class: F

Work system: S1 (continuous)

Cooling method: IC611/IC616

Installation form: IMB3

Motor connection: Y (three outlet terminals in the junction box, the junction box from the extension of the spindle is located on the right side of the base)

Altitude: no more than 1000m

This type of motor is suitable for use in environments where the ambient air temperature does not exceed 40 ° C and there is no serious dust, the minimum ambient air temperature is -15 ° C, and there is no corrosive and explosive gas in the air (which can also be made into a damp heat or high-altitude motor).

High Voltage Squirrel Cage Motors:

Our High Voltage Squirrel Cage Motors are designed to operate at voltages ranging from 2300V to 13,800V, making them ideal for heavy-duty applications where high power is required. These motors are available in a wide range of power ratings, ranging from 250HP to 10,000HP, and can be customized to meet the specific needs of our customers.

Our High Voltage Squirrel Cage Motors feature a rugged construction and are built to withstand harsh operating environments, including high temperatures, dust, and moisture. They are equipped with high-quality bearings and a precision-balanced rotor, which ensures smooth and efficient operation. These motors are also designed with easy access to bearings and other key components, making maintenance and repairs fast and simple.
