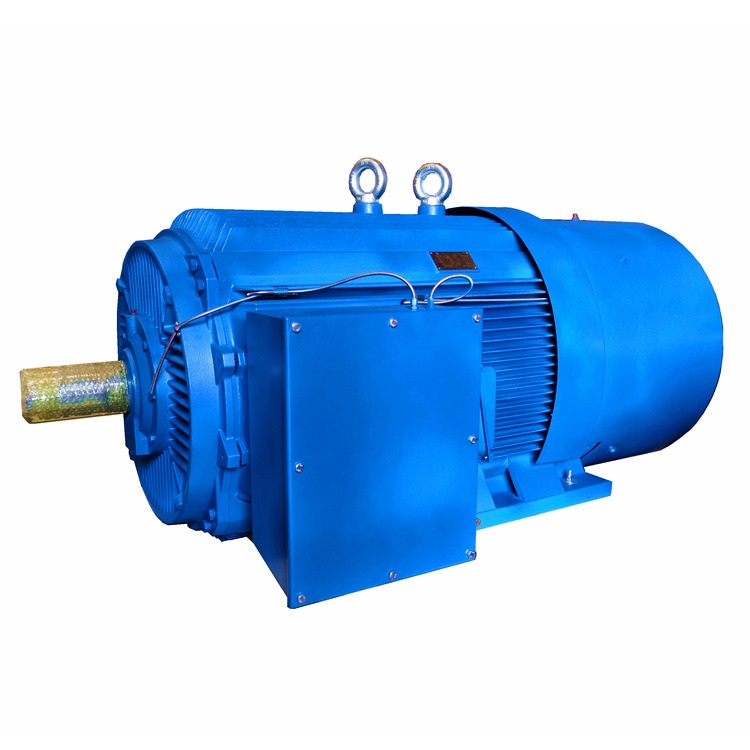

Low voltage high power squirrel cage motor

The low-voltage variable frequency motor has the characteristics of wide speed regulation range, low vibration and low noise. The motor adopts the squirrel-cage structure, which is reliable in operation and convenient in maintenance. The installation dimensions and power levels are in accordance with the IEC standard, which is consistent with the corresponding Y series low-voltage motors. Interchangeability and versatility.

The low-voltage variable frequency speed control motor is equipped with an independent cooling fan to ensure that the motor has good cooling effect at different speeds. This series of motors outputs constant torque when operating from 5 (3) to 50 Hz, and outputs constant power when operating from 50 to 100 Hz.

The low-voltage variable frequency motor can be used with many inverters, and controlled by the inverter to achieve the speed under different conditions.

High Reliability High Voltage Motor Supplier:ZCL Electric Motor Technology Co., Ltd.

Frame number range: 315-560

Power range: 200kW-1500kW

Frequency: 50/60Hz

Number of levels: 2/4/6/8/10

Working system: S1

Protection level: IP54/IP55

Insulation class: F

Cooling method: IC416

Ambient temperature: -15 ° C ~ 40 ° C

Altitude: no more than 1000M

Voltage: 220V, 380V, 660V, 220/380V, 380/660V

Working mode: continuous (S1), allowing full pressure starting.

Frequency conversion range: 5Hz ~ 50Hz constant torque operation

50Hz ~ 100Hz constant power operation

Wiring method: 55KW and below for Y connection, above 55KW for △ connection

Note: If there are special requirements for frequency, voltage, etc., it can be submitted at the time of ordering!
