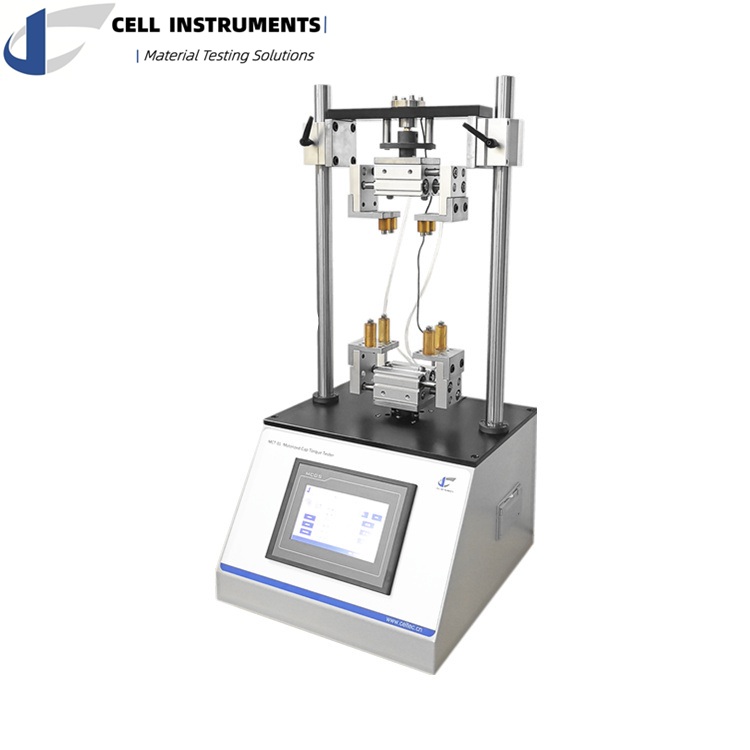

MCT-01 Motorized Cap Torque Tester
Application
The measurement of the open and lock forces of bottle caps holds significant importance as both online and offline technical parameters in production. These forces can have a direct impact on the ease of product transportation and consumer usage. Due to its exceptional stability and precision, this measurement becomes an indispensable tool in the manufacturing process.
The MCT-01 Motorized Cap Torque Tester assesses the open and lock forces of caps on various containers like medicine bottles, PET bottles, spout bags, and flexible tube packages. This torque test ensures that caps are appropriately sealed and easy to open during production, guiding the subsequent transportation and consumption phases effectively.

Test Process
A test specimen is loaded into the system using both the cap pneumatic clamp and the bottle pneumatic clamp. Upon pressing the CLAMP button, these clamps automatically engage to securely fasten the cap and bottle. After TEST button is pressed, the lower clamp initiates rotation, effectively opening or closing the bottle as per the test requirements. During this precise movement, the torque force is accurately measured and recorded, allowing for thorough analysis and evaluation of the results. This measurement ensures that the applied torque during cap sealing or opening is precisely quantified, providing valuable insights into product performance and quality control.

Technical Features
PLC controlled unit for industrial-level stability, with an intuitive HMI touch screen interface.
Auto clamping and rotating capability to simulate a production line environment.
Measurement of both locking and opening forces.
Automatic peak value retention.
Equipped with upper and lower dual pneumatic clamping mechanisms.
Automatic rotation functionality.
Includes a micro printer for effortless data recording.
Offers multiple units of measurement display, including Kgf.cm, N.cm, daN.cm, Inch.lbs, and N.m.
Features overload protection and an auto-zeroing function.
RS232 port and professional computer software.（Optional）

Major Standards
ASTM D2063, ASTM D3198, ASTM D3474, GB/T17876, BB/T0025, BB/T0034

Main Parameters
Test Range 10 Nm (or as required)
Accuracy 1% FS
Resolution 0.001 Nm
Clamp Range Φ5mm~φ80mm for cap  Φ5mm~φ170mm for bottle
Power AC 110~220V
