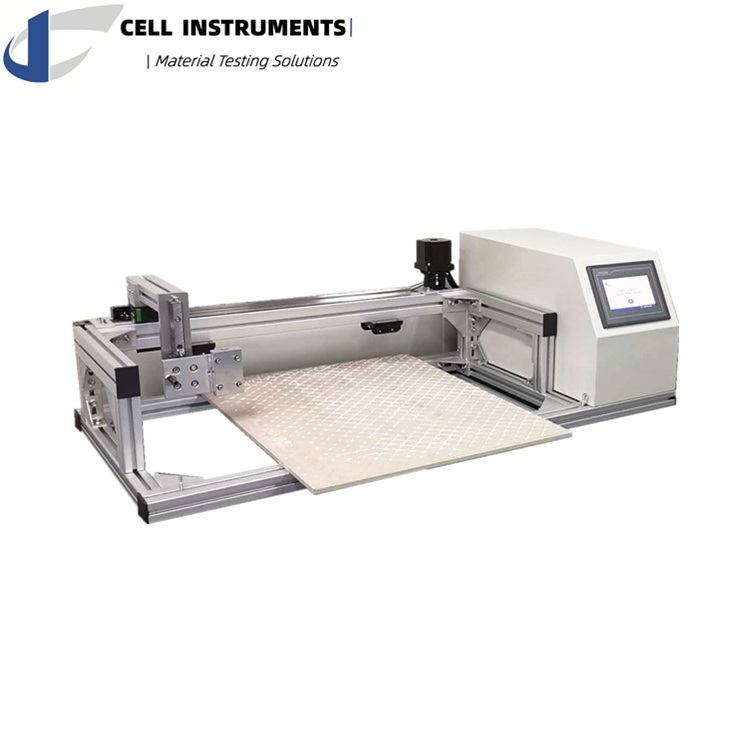

CLEAN-EFF01 Cleaning Efficacy Tester

Application
Cleaning materials are widely used at home, office, kitchen, bedroom, hotels, restaurants, washroom, industries etc. CLEAN-EFF01 Cleaning Efficacy Tester is suitable for cleaning performance testing of products such as cleaning cloths, floor mops, mops, piling rags, etc., and can simulate the cleaning performance test of fabric materials on surfaces such as tiles, wooden floors, and glass.

Significance
The CLEAN-EFF01 Cleaning Efficacy Tester offers a convenient means to replicate the application of cleaning materials. It serves as an efficient tool for quality and production personnel to assess products, leading to enhanced quality, production, and development efforts. This ultimately saves labor and contributes to better-quality outcomes.

Test Method
Secure the sample cloth onto the aluminum or plastic frame. Subsequently, position it vertically on a mobile arm, ensuring the sample's surface fully engages with the intended rubbing or sliding surface. The operator can manually regulate the applied pressure, as well as control the movement speed and cycle count. Once the designated number of cycles is completed, the material is subjected to additional analysis based on various parameters.

Technical Features
The CLEAN-EFF01 Cleaning Efficacy Tester boasts a combination of flexibility and durability in its design. This equipment is operated via a PLC control system and an HMI screen, ensuring ease of operation. Its robustness is at an industrial level, guaranteeing stability during use. Additionally, the inclusion of a fastspeed linear guide ensures both high-speed performance and precision accuracy.

Key Parameters
Speed 1~27000mm/min (adjustable)
Speed Accuracy 1 mm/min
Test Cycles 1~20000
Moving Distance 600mm
Power Input 110~220V
