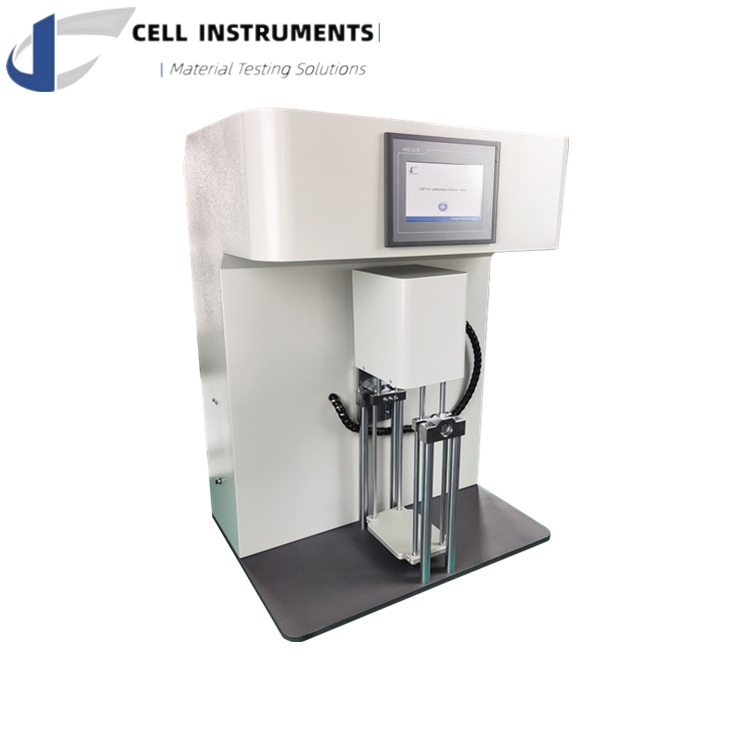

CLRT-01 Carbon Dioxide Volume Tester
Application
The CLRT-01 Carbon Dioxide Volume Tester is a crucial tool in the beverage industry, focusing on gauging carbonation levels, which significantly impact the bubbly and sensory qualities of drinks, thus influencing product excellence and customer contentment. Specially crafted for CO2 volume assessment, the CLRT-01 employs an automated process to uncover the connection between pressure and temperature, a pivotal factor in thorough beverage quality analysis. By seamlessly merging these elements, it offers a profound understanding of carbonation dynamics, granting manufacturers the ability to maintain consistency, adapt formulations, and provide effervescence that resonates with consumer preferences and brand achievement.

Automatic Testing and Shaking
The tester automates the traditional manual process: Piercing the bottle cap ➔ Opening the vent valve to release pressure ➔ Closing the vent valve ➔ Vigorously vibrating for 40 seconds ➔ Recording the stabilized MPa pressure (while measuring liquid temperature) ➔ Obtaining the carbon dioxide gas capacity test results.

Technical Features
1.This unit is under precise PLC control (at an industrial-grade stability level) and operated through an HMI touch screen interface.
2.Agitating the sample bottle is achieved using a servo motor and gearbox transmission mechanism.
3.The design incorporates anti-leak features and includes accurate temperature and pressure measurement.
4.The process involves automated piercing and shaking.
5.Displacement and speed during piercing are controlled for accuracy.
6.The shaking parameters, including frequency and duration, can be customized.
7.Test results are guaranteed accurate due to the implementation of a highprecision pressuresensor.
8.Real-time temperature display is enabled by a precision temperature sensor.
9.Post-test, the carbonation volume is automatically and presented.
10.Designed to prevent leaks, this versatile tester is suitable for both bottles and cans.
11.(Optional) A microprinter can be incorporated for additional functionality.
12.(Optional) The inclusion of an RS 232 port and professional software provides further versatility.

Main Parameters
Test Range 0~1MPa
Resolution 0.01KPa
Shaking Speed Adjustable
Piercing Speed 5mm/s (other available)
Sample Height ≤ 350mm (other available)
Temp. range 0 ~ 30 ℃
Shaking time 40s (other available)
Resolution 0.1 ℃
