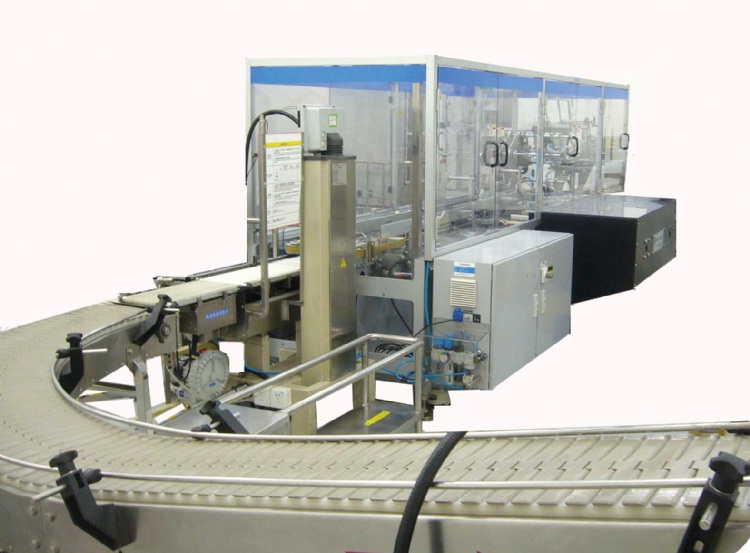

Cartoning Machine
產品型號：Cartoning Machine
產品分類：包裝印刷暨食品及製藥機械 / 包裝機械 / 紙盒封合包裝機
產品特色
1. High speed cartoning machine is designed for all kinds of products which need to be packed in carton. The whole process is fully automatic, which includes carton feeding, carton filling, flap folding, glue spraying, carton sealing, and finished product discharging. The whole machine uses mechanical transmission system, which features high stability, high accuracy, low noise, easy maintenance and operation.
2. Using planetary motion vacuum carton board picking up system, which ensures high picking up speed and stable carton opening. No products no carton picking up.
3. 10 sets of follow-up type pushing arms ensure the synchronizations of each motion for pushing the products into the carton.
4. Large carton board storage capacity, each time can boad 2000-3000 cartons board into the hopper.
5. Using safety clutch to realize the automatic stop under overload.
6. Automatic glue spraying and automatic mechanical date printing.
產品規格
| Packing speed: Standard speed: 100cartons/min Speed range: 20-150cartons/min Max. speed: 150cartons/min Carton board specification: W40mm x H40mm-W100mm x H100mm Carton size：L105-250mm, W50-230mm, H30-120mm Air compression: Pressure: 5kgf/cm2 Consumption: 640nl/min Glue sprayer: NORDSON brand Dimension: L8000mm x W1900mm x H1800mm |
