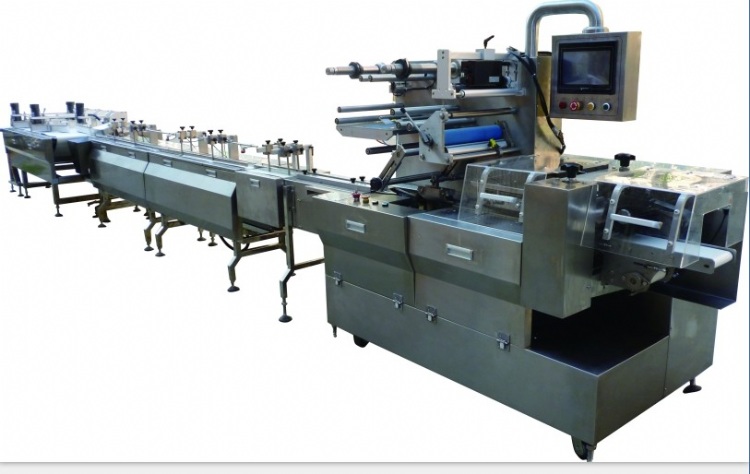

Three Servo-Control Horizontal Packing Machine
產品型號：Three Servo-Control Horizontal Packing Machine
產品分類：包裝印刷暨食品及製藥機械 / 食品及製藥機械 / 臥式包裝機
產品特色
Main Features:
1. Main machine uses two sets of servo control system to control end sealer and film feeding system individually, high precision.
2. Two back sealing wheel to ensure the seal strength, with pneumatic open-close structure, the horizontal sealer can be closed/opened automatically while machine starts/stops to avoid film burnt.
3. Feeding conveyor adopts individual servo motor for driving, increase the stability for product feeding.
4. Feeding rail use closed structure to prevent the shaking of chain under high speed running, which can protect the horizontal sealing system.
5. Eccentric device: integrated structure and dynamic balanced to reduce rotary inertia while in high speed running.
6. Control panel: rotatable, cantilever touch screen (180 degree rotatable).
7. Film feeding system with auto splicing device, to avoid wasting time for changing film.
產品規格
| Model: 450/099N: Max film width: 420mm Packaging speed: 30-260 bags/min Cutting length: 90-260mm Packaging width: 20-150mm Packaging height: 5-30mm Model: 450/120N: Max film width: 420mm Packaging speed: 30-260 bags/min Cutting length: 75-260mm Packaging width: 20-150mm Packaging height: 10-50mm Model: 450/150N: Max film width: 420mm Packaging speed: 30-160 bags/min Cutting length: 120-260mm Packaging width: 20-150mm Packaging height: 30-65mm |
