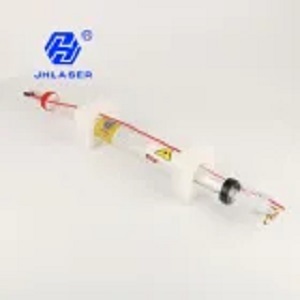

50W CO2 Laser Tube
產品型號:5
產品分類:零組件配件 / 機械零件(零組件) / 精密金屬零件
產品特色
Jinghang M series CO2 laser tubes are mainly used for Medical & Beauty Industry. With long term manufacture experience, the power of the tube is stable.
產品規格
Jinghang M series CO2 laser tubes are mainly used for Medical & Beauty Industry. With long term manufacture experience, the power of the tube is stable.
Laser tube main specifications models to laser power as the most important basis. Common models are: 30w, 40w, 50W. Different power of the laser
tube is mainly divided into different lengths. Such as 60W laser tube is 1200mm or 1250mm, 80W length is generally 1600mm. We also can make the tubes as customers, requirement specially.Just contact us!
Specification
Type |
Length (mm) |
Dia (mm) |
Rated Power (W) |
Max Power (W) |
Instability(%) |
Warranty (Months) |
M-600 |
600 |
50 |
30 |
40 |
≤1% |
6 |
M-700 |
700 |
50 |
40 |
50 |
≤1% |
6 |
M-800 |
800 |
50 |
45 |
50 |
≤1% |
6 |
Main parameters
Model |
M-600/700/800 |
Length |
600/700/800mm |
Diameter |
50±1mm |
Power |
220±22V AC, 50±1Hz |
Wavelength |
10.6μm±2μm |
Catalyst |
No |
Output laser power on tissue |
≥20W |
Triggering Voltage |
18-23KV |
Working Voltage |
18-21KV |
Triggering Current |
2-3mA |
Max Working Current |
20mA |
Type Of Cooling |
Water-cooling 15-25℃ |
Spot diameter |
≤0.8mm |
Beam terminal divergence angle: |
θ≤20mrad |
Features
High-power output: wide range of power adjustment, suitable for ordinary high-power cutting operations;
Low-power output: small power adjustment range and high precision adjustment step, suitable for low power output fine processing operations.
Click here to know more information about jinghang.
Application
Application: Industrial engraving, cutting and marking etc.
Applicable material: Leather, Cloth, Paper, Stone, Acrylic, Wood, ABS double color sheet etc…
Applicable industrial: Advertising Decoration, Gifts, Paper Products, Bamboo Products, Lighting, Packaging, Plate-making, Display Cutting etc…
