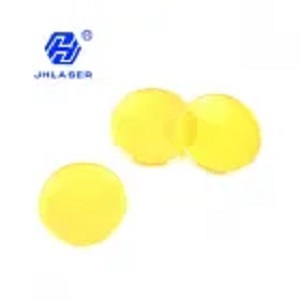

CVD ZnSe Material Focus Laser Lens
產品型號:3
產品分類:零組件配件 / 機械零件(零組件) / 精密金屬零件
產品特色
Jinghang laser company have material ZnSe Laser Focus Lens, Mo Metal Reflector , Si reflector, Co2 Laser Tube and so on. Material ZnSe Laser Focus Lens features CVD ZnSe imported from America. boasting low material absorption rate, excellent high-power density endurance, firm surface membrane, and great scratch resistance.
產品規格
CVD ZnSe Material Focus Laser Lens
Jinghang laser company have material ZnSe Laser Focus Lens, Mo Metal Reflector , Si reflector, Co2 Laser Tube and so on. Material ZnSe Laser Focus Lens features CVD ZnSe imported from America. boasting low material absorption rate, excellent high-power density endurance, firm surface membrane, and great scratch resistance.. Jinghang laser company can customize all-metal mirrors in different diameter specifications according to customers` different requirements,
With the imported USA ZnSe material, our products can withstand high power density; and the film is solid, with which the lens are resistant to wipe. Because of the double-side film, the filter ability of the light (the wavelength is 10.6μm) can reach 99%
General requirements for lens
Material: |
CVD ZnSe (USA) |
Wavelength: |
10.6μm |
Focal length tolerance: |
±1% |
Form tolerance: |
+0.0/-0.1mm |
Thickness tolerance: |
±0.1mm |
Type: |
λ/2 632.8nm |
Finish: |
20-10 |
Eccentric: |
<3' |
Effective aperture: |
>90% |
The down side: |
<0.2×45° |
Coating: |
10.6um Antireflective coating, 8-14umBroadband antireflective coating |
Product Application:
Jinghang laser tubes have widely applications:
1. Application machine: ZnSe Focus Lens are used for CO2 laser cutting, drilling, carving & other laser system.
2. Application materials: cutting acrylic,glass, cloth, leather, cloth, stone, wood, color board etc
3. Application Industry: Advertising decoration, gifts, paper products, bamboo products, lighting, packaging, plate-making, display cutting etc
