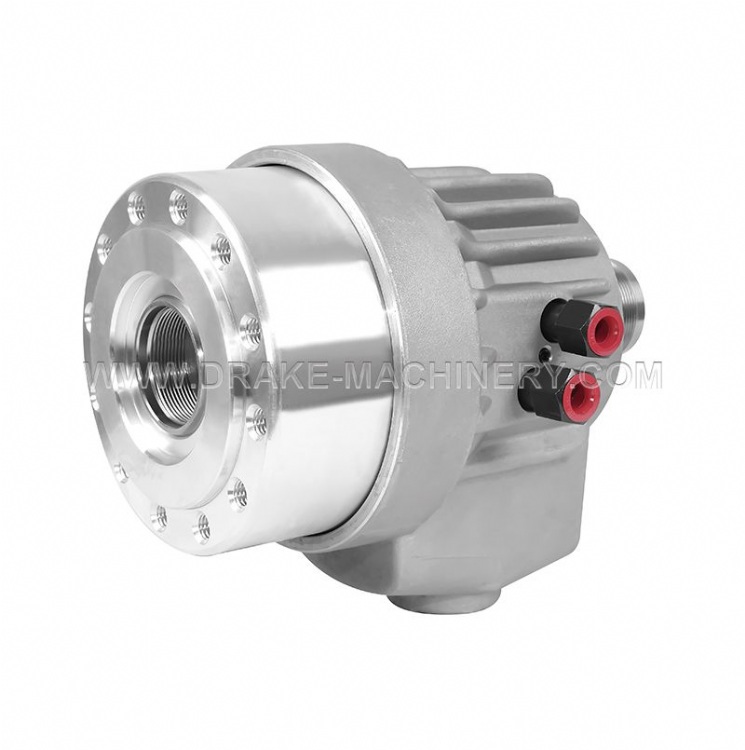

TH Through Hole Rotating Hydraulic Cylinder Hydraulic Chuck Cylinder For Sale Rotary Cylinder Manufacturers

放大圖片

TH Through Hole Rotating Hydraulic Cylinder Hydraulic Chuck Cylinder For Sale Rotary Cylinder Manufacturers

產品型號：TH

產品分類：零組件配件 / 油壓與氣壓元件 / 油壓元件

立即線上詢問

產品特色

產品規格

Lightweight, large through-hole rotary cylinders with through-holes for machining long-shaft parts.

Built-in check valve self-locking mechanism can prevent pipe damage, loss of pressure source, and ensure stable clamping of workpieces. Safe and reliable.

High-speed, high-life, internal components are imported.

Can be customized according to customer requirements.

Performance parameters
Model/Spec.	Piston area (cm²)		Stroke (mm)	Hightest turnover number min-1(rpm)	Maximum working pressure MPa(kgf/cm²）	GD2 (kg.m²)	Total volume of oil drainage	Weight (kg)
Model/Spec.	Press side	Pull side	Stroke (mm)	Hightest turnover number min-1(rpm)	Maximum working pressure MPa(kgf/cm²）	GD2 (kg.m²)	Total volume of oil drainage	Weight (kg)
TH428	53.2	50.5	10	8000	4.0(40)	0.02	3	5.8
TH536	69.8	67.5	15	8000	4.0(40)	0.05	3	8.5
TH646	97.3	87.9	15	7000	4.0(40)	0.09	3	13.5
TH852	146.8	136.6	20	6200	4.0(40)	0.2	3.9	16.4
TH1075	196.2	182	25	4700	4.0(40)	0.4	4.2	25.8
TH1291	250.6	234.1	30	3800	4.0(40)	0.61	4.5	33
TH1512	345.4	334.6	30	2800	4.0(40)	1.5	7	50
Size parameters
Model/Spec.	A I.D	B	C	D	E (h7)	F	G1 max.	G1 min.	G2 max.	G2 min.	H	J	K	L	M1	M2	N1	N2
TH428	90	130	120	100	80	40	10	/	35	/	45	127.5	155	6-M8×15	M33×1.5	25	M34×1.5	26
TH536	105	150	135	115	100	50	15	/	40	/	47.5	125.5	170.5	6-M10×20	M42×1.5	25	M44×1.5	28
TH646	125	169	156	130	100	65	15	/	40	/	60	135.5	193.5	12-M10×20	M55×2	30	M52×1.5	32
TH852	150	198	188	170	130	70	20	0	45	25	66	145	198	12-M10×20	M60×2	30	M58×1.5	34
TH1075	175	225	213	190	160	95	25	/	50	/	62	166.5	231	12-M10×22	M85×2	35	M84×2	40
TH1291	205	255	240	215	180	110	30	/	55	/	64.5	180.5	250	12-M12×24	M100×2	35	M99×2	46
TH1512	250	315	305	275	230	140	30	/	55	/	68	193	273	12-M16×32	M130×2	45	M134×2	46

Model/Spec.	01 H8	02 H8	P	Q1	Q2	Q3	R (g7)	S	T	U	V	W1	W2	X1	X2	Y1	Y2
TH428	30	28	101.5	11	24	PT1/4	32	45	65	88	4	72	105	/	/	76	M4×7
TH536	38	36	119	11	24	PT1/4	42	55	80	98	4	80	110	/	/	83	M5×10
TH646	50	46	127.5	12	30	PT3/8	50	70	95	116	4	98	125	62	M4×8	98	M5×10
TH852	55	52	135.5	12	32	PT3/8	56	75	100	128	4	100	130	67	M4×8	110	M6×10
TH1075	80	75	153.5	17	36	PT3/8	81	100	125	158	5	115	160	92	M4×8	145	M6×10
TH1291	95	91	165	21	34	PT1/2	96	120	142	180	5	136	185	110	M4×8	165	M6×10
TH1512	125	120	176.5	23	40	PT1/2	130	160	204	218	6	160	210	171	M6×10	215	M6×10

We are the manufacturer of China Rotary Cylinder, specializing in Rotating Hydraulic Cylinder and High-Speed Hydraulic Cylinder, with built-in check valve self-locking mechanism to prevent pipe damage, loss of pressure source, and ensure stable workpiece clamping. Safe and reliable.If you have any special requirements or parameter changes, please provide information and contact us.
