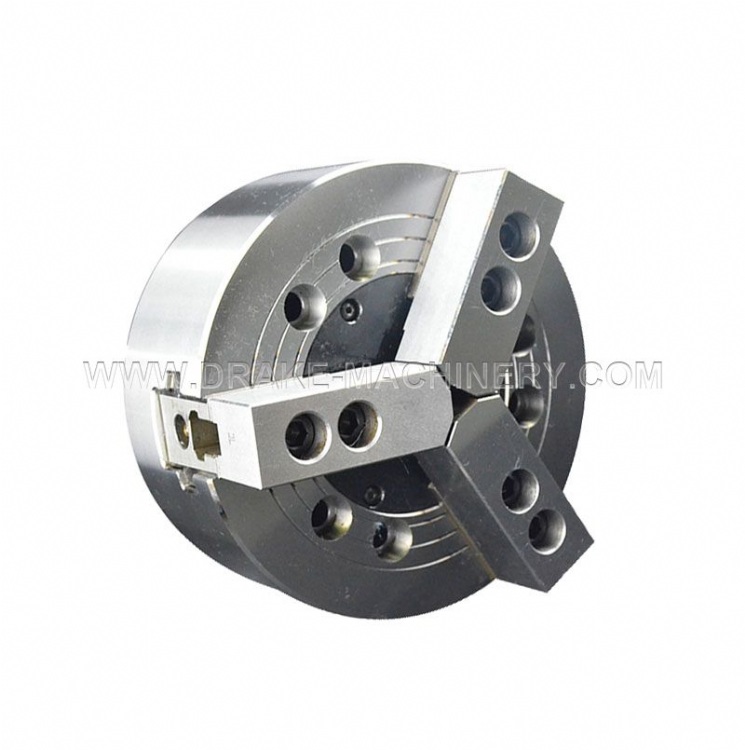

YKD 3-Jaw Chuck Hollow Large Stroke 3 Jaw Lathe Chuck
產品型號：YKD
產品特色
It is a crank type three-jaw chuck with a large-size aperture through the center. It has a mega-long stroke, a highly rigid construction and a highly clamping precision.
產品規格
It is a crank type three-jaw chuck with a large-size aperture through the center. It has a mega-long stroke, a highly rigid construction and a highly clamping precision. The sliding side was hardened, was ground precisely and was lubricated directly. The assembling and connecting process is the same as that of the hollow chuck. It is a compatible replacement for hollow chucks, which means the pull rod doesn’t have to be changed.
Product Parameters
|
YKD three-jaw hollow large stroke chuck |
|||||||||||||
|
|
wedge stroke（mm) |
Jaw stroke (diameter)（mm） |
maximum allowable thrust（kgf） |
maximum clamping force（kgf) |
maximum oil pressure（kgf） |
maximum speed （r.p.m) |
weight （kg） |
Inertia（kg.m2) |
Compatible cylinder |
Outer diameter clamping range（mm) |
|
|
|
|
TYPE |
|||||||||||||
|
YK3-06D |
13 |
26 |
2400 |
2650 |
27 |
3600 |
14.8 |
0.063 |
1246 |
ø10-ø168 |
|
|
|
|
YK3-08D |
16 |
28 |
3500 |
4150 |
26 |
3000 |
24.1 |
0.175 |
1552 |
ø10-ø210 |
|
|
|
|
YK3-10D |
22 |
32 |
4870 |
5700 |
27 |
2400 |
43.5 |
0.347 |
1075 |
ø18-ø254 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
B |
C(H6) |
D |
D1 |
D2 |
E |
E1 |
F |
Gmax |
Gmin |
H |
J |
|
TYPE |
|||||||||||||
|
YK3-06D |
168 |
90 |
140 |
104.78 |
82.563 |
116 |
5 |
18 |
45 |
6.5 |
-8.5 |
19 |
45 |
|
YK3-08D |
210 |
100 |
170 |
133.35 |
106.375 |
150 |
5 |
23 |
52 |
7 |
-13 |
20 |
52 |
|
YK3-10D |
254 |
110 |
220 |
171.45 |
139.719 |
190 |
5 |
18 |
75 |
8 |
-17 |
25 |
75 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Kmax |
L |
L1 |
M |
N |
P |
Qmax |
Qmin |
Rmax |
Rmin |
S |
T |
U |
|
TYPE |
|||||||||||||
|
YK3-06D |
M55*2 |
6-M10 |
15 |
37 |
73 |
20 |
25.75 |
13.75 |
39 |
27.0 |
31 |
12 |
3-M6 |
|
YK3-08D |
M60*2 |
6-M12 |
18 |
38 |
95 |
25 |
28.25 |
16.25 |
49.25 |
33.25 |
35 |
14 |
3-M6 |
|
YK3-10D |
M85*2 |
6-M16 |
22 |
43 |
110 |
30 |
35.25 |
17.25 |
64.25 |
45.25 |
40 |
16 |
3-M8 |
DIMENSIONS
DIMENSIONS
DIMENSIONS
