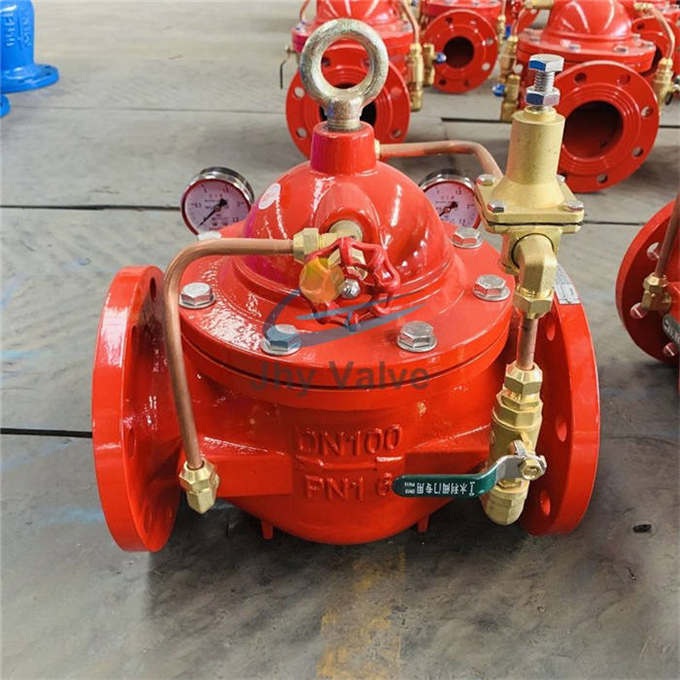

Hydraulic Flow Control Fire Pressure Reducing Valves
產品型號:Fire Pressure Reducing Valves
產品特色
Hydraulic Flow Control Fire Pressure Reducing Valves
產品規格
Hydraulic Flow Control Fire Pressure Reducing Valves
Product Description
Name |
Material |
Body |
Ductile iron GGG50 with WRAS FBE coating |
Stem |
Carbon steel with galvanization, SS420, SS304, SS3316 |
Seat |
Ductile iron, brass |
Ball valve |
Brass |
Pilot tube |
Brass |
Size: 1½" - 48" (DN40 - DN1200)
Standard: DIN / BS / ANSI / Korean
Structure: Gate
Pressure: PN10, PN16, PN25
Coating: WRAS approved epoxy powder at 300 micron thick
Media: Water
Certificate: ISO, SGS, CE
Hydraulic Control Valves Features:
1. Reasonable and novel structure, reasonable use of the hydraulic principle to control.
2. Stable and reliable operation, large flow.
3. Valve clack quick opening and slow closure, no water hammer impacting(closing time adjustable).
4. High precision of pressure reducing and relief, large range for adjusting.
5. Good sealing ability, long service life.
6. Easy installation and maintenance.
Buy low price, high quality hydraulic pressure control valve,please contact.
