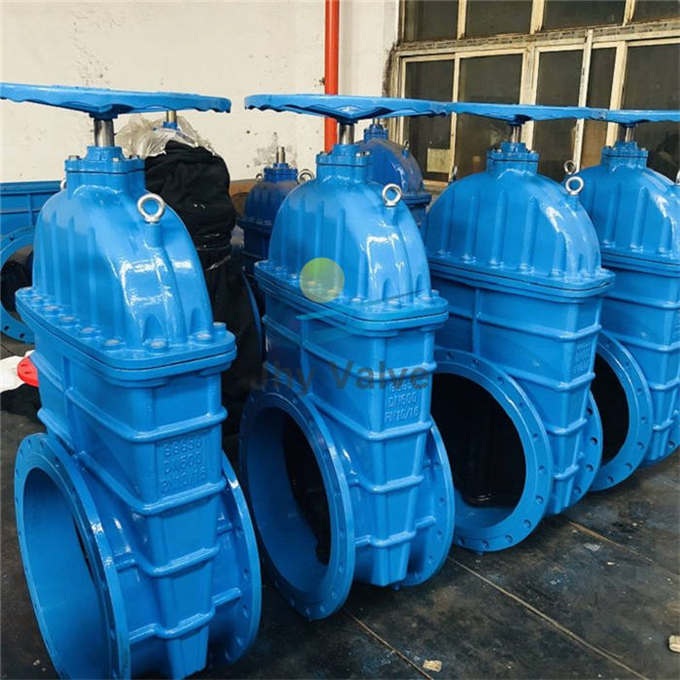

24 Inch DN600 Ductile iron BS DIN F4 Soft Seal Gate Valve
產品型號:DN600 Ductile iron BS DIN F4 Soft Seal Gate Valve
產品特色
24 Inch DN600 Ductile iron BS DIN F4 Soft Seal Gate Valve
產品規格
24 Inch DN600 Ductile iron BS DIN F4 Soft Seal Gate Valve
Size: 1½" - 48" (DN40 - DN1200)
Standard: DIN / BS / ANSI / Korean
Structure: Gate
Pressure: PN10, PN16, PN25
Coating: WRAS approved epoxy powder at 300 micron thick
Media: Water
Certificate: ISO, SGS, CE
Name |
Material |
Body |
Ductile iron GGG50 with WRAS FBE coating |
Stem |
Carbon steel with galvanization, SS420, SS304, SS3316 |
Wedge disc |
Ductile iron GGG50 overall EPDM rubber coasting |
handle |
Thin iron, ductile iron |
Wedge nut |
Ductile iron, brass |
Ductile iron Gate Valve Features:
1. Ductile iron body has more stronger tensile strength, not easy to be broken up.
2. Gland on top design can replace the seal ring easily without cutting the water supply.
3. 3 "O"type ring seal can reduce the friction resistance when opening and closing.
4. Easy handling and reliable sealing.
