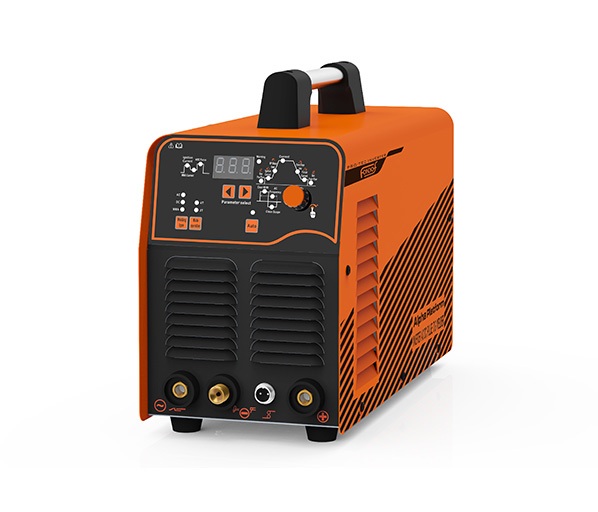

AC DC Pulse TIG Welding Machines
產品型號：AC DC Pulse TIG Welding Machines
產品特色
AC DC Pulse TIG Welding Machines
產品規格
AC DC Pulse TIG Welding Machines
Advanced double inverter technology.
Three phase power supply, light weight.
HF ARC start for TIG, ARC force for MMA, 2t/4t and pulse control function for TIG
AC/DC and pulse TIG suitable for steel, stainless steel, aluminum.
Digital display, current preset adjusting, can be with foot controller.
TIG Welding Machines Specifications
|
Technical Parameters |
Alpha AC/DC TIG 160 |
|
Rated Input Voltage (V) |
AC220V |
|
Power Frequency(Hz) |
50/60 |
|
Rated Input Current（A） |
25.1(AC TIG), 20.0(DC TIG), 30.0(MMA) |
|
Rated Input Power(KVA) |
5.5(AC TIG), 4.4(DC TIG), 6.6(MMA) |
|
No-load Voltage(V) |
60 |
|
AC Frequency(Hz) |
50∼100 |
|
Welding Current（A） |
15∼160(AC TIG) , 10∼160(DC TIG), 10∼160(MMA) |
|
Rated Duty Cycle%(40℃) |
25(AC TIG), 20(DC TIG), 20(MMA) |
|
Efficiency(Rated Conditions) |
≧0.85 |
|
Insulation Class |
F |
|
Protection Grade |
IP2１S |
|
(mm)Dimension(mm) |
465x200x335 |
More information of EACO Welding Machines, please click here
